Ironing And Folding Automatic Machine For Clothes Folding Speed 10-50 M/Min 220v/380v

220v automatic iron and folding machine

380v automatic iron and folding machine

220v automatic ironing and folding machine

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

ISO9001:2008

Request A Quote

Ironing And Folding Automatic Machine For Clothes Folding Speed 10-50 M/Min 220v/380v

Product Details

Function:

Automatic Clothes Folding

Warranty:

1 Year

Power:

1.5kw

Weight:

2200kg

Size:

4350*2800*1800mm

Capacity:

3m,3.3m

Used For:

Clothes Folding

Voltage:

220v/380v

Max Folding(times):

Folding Speed(m/min):

10-50 M/min

Air Pressure(Mpa):

0.65-1.0

Motor Power(kw):

1.5

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$13,200.00/sets >=1 sets

Packaging Details

WOODEN PACKAGE for Folding machine.

Supply Ability

100 Set/Sets per Month clothing dryer machine

Fabric Clothes Laundry Automatic Ironing Folding Machine For Home Laundry Needs

Get Best Price

Automatic Clothes T-Shirt Folding Machine For Home Owners

Get Best Price

YASEN Five Folding Time Rated Voltage Automatic Ironing and Folding Machine for Clothes

Get Best Price

Folding Cloth Machine Bedsheets Ironing And Folding Machine Automatic 1.5kw

Get Best Price

86-21-5789-9088

Contact Now

Product Description

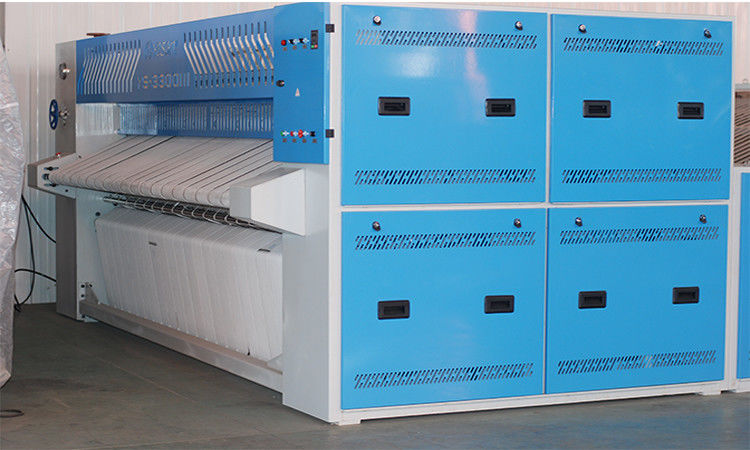

Ironing and Folding Automatic Machine for Clothes Folding Speed 10-50 m/min 220v/380v

This Ironing and Folding Automatic Machine for Clothes is a remarkable device. It offers a highly efficient and automated solution for ironing and folding clothes. The machine is capable of achieving a clothes folding speed ranging from 10 to 50 meters per minute, ensuring swift and productive operation. It is available in two voltage options, 220v and 380v, providing flexibility to adapt to different electrical setups. With its advanced technology and user-friendly design, it simplifies the entire process of ironing and folding clothes, saving both time and effort. It is ideal for various settings such as laundry facilities, hotels, or even in domestic use. The consistent and precise folding provided by this machine helps maintain the neatness and organization of clothes. Whether for small or large volumes of laundry, this automatic machine is a reliable and valuable tool for achieving efficient and neatly folded clothes.

Product Parameters

Attributes	ZD-3000V	ZD-3300V	ZD-3300V-4	G/ZD-3300V-4
Max Feeding Width (mm)	3000	3300	3300	3300
Maximum fold length (mm)	3600	3600	3600	3600
Folding Speed(m/min)	0-60	0-60	0-60	0-60
Rated-Voltage (v/p/Hz)	380/3/50	380/3/50	380/3/50	380/3/50
Power(kw)	1.47	1.47	1.47	2.5
Air Pressure(Mpa)	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Compressed air consumption (L/min)	60	60	60	60
Total weight (kg)	1580	1600	1600	1600
Dimension WxDxH(mm)	4255×3052×1900	4255X3052X1900	4255X3052X1900	4255×3052×1900

1.Used for bedsheets, quilts, tablecloth etc., 1 fold to 5 folds, various folding program, meet
different requirements
2.135°rotatable PLC controller, convenient for the workers to operate from different sides
3.Connect with flatwork ironing machine to realize ironing and folding by one workflow,
economize on manpower and increase production greatly
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
