Bed Sheet Folding Ironing Cloth Automatic Ironing Folding Machine 380V

bed sheet automatic ironing folding machine

380V automatic ironing folding machine

380V automatic ironing and folding machine

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

CE/ISO9001/ISO14001

Request A Quote

Bed Sheet Folding Ironing Cloth Automatic Ironing Folding Machine 380V

Product Details

Brand:

YASEN

Warranty:

1 Year

Power:

1.5kw

Weight:

2200kg

Size:

4350*2800*1800mm

Foldring Time:

Five

Maximum Folded Width:

3000mm

The Maximum No.of Folds:

5/32 (fold/layer)

Maximum Folding Rate:

50 M/min

Rated Voltage:

AC380/50(V/Hz)

Motor Power:

1.3kw

Used For:

Bed Sheet Folder Ironing

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$13,200.00/sets >=1 sets

Packaging Details

wooden package for Bedsheet Folding Machine.also can accroding to customers` request

Supply Ability

10 Set/Sets per Month

Convenient Time Saving Automatic Towel Folding Machine For Laundry Shop

Get Best Price

Automatic Clothes T-Shirt Folding Machine For Home Owners

Get Best Price

YASEN Five Folding Time Rated Voltage Automatic Ironing and Folding Machine for Clothes

Get Best Price

Folding Cloth Machine Bedsheets Ironing And Folding Machine Automatic 1.5kw

Get Best Price

86-21-5789-9088

Contact Now

Product Description

Bed Sheet Folder Ironing Cloth Automatic Ironing Folding Machine

1.Used for bedsheets, quilts, tablecloth etc., 1 fold to 5 folds, various folding program, meet
different requirements
2.135°rotatable PLC controller, convenient for the workers to operate from different sides
3.Connect with flatwork ironing machine to realize ironing and folding by one workflow,
economize on manpower and increase production greatly
After sales service:

The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.

Engineers available to service machinery overseas.Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract

Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping

Product Parameters

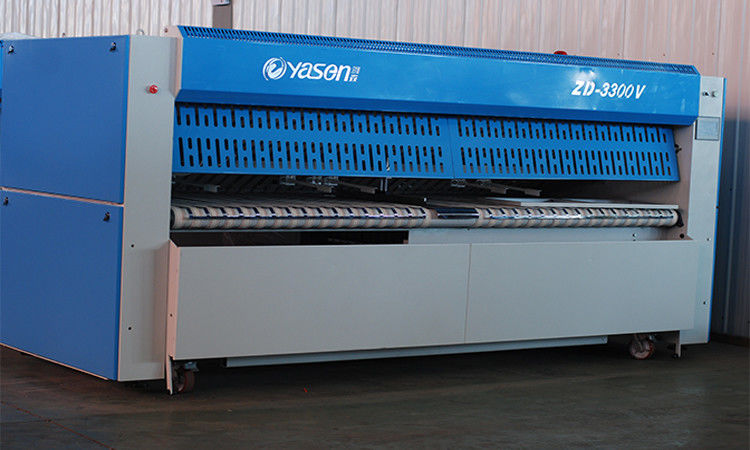

Attributes	ZD-3000V	ZD-3300V	ZD-3300V-4	G/ZD-3300V-4
Max Feeding Width (mm)	3000	3300	3300	3300
Maximum fold length (mm)	3600	3600	3600	3600
Folding Speed(m/min)	0-60	0-60	0-60	0-60
Rated-Voltage (v/p/Hz)	380/3/50	380/3/50	380/3/50	380/3/50
Power(kw)	1.47	1.47	1.47	2.5
Air Pressure(Mpa)	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Compressed air consumption (L/min)	60	60	60	60
Total weight (kg)	1580	1600	1600	1600
Dimension WxDxH(mm)	4255×3052×1900	4255X3052X1900	4255X3052X1900	4255×3052×1900

The Bed Sheet Folder Ironing Cloth Automatic Ironing Folding Machine is a remarkable piece of equipment. It is specifically designed to handle the ironing and folding of bed sheets and other cloth items with remarkable efficiency and automation. This machine simplifies and streamlines the otherwise laborious process of ironing and folding. It ensures that bed sheets and cloth are neatly ironed to remove wrinkles and creases, and then precisely folded for convenient storage or use. The automatic operation saves time and effort, allowing for quick and consistent results. It is a reliable and practical solution for various settings such as hotels, laundries, and even in domestic use. With its advanced features and user-friendly design, it offers a seamless experience in taking care of bed sheets and cloth, providing a tidy and well-organized finish.
