Place of Origin:
Shanghai, China
Brand Name:
YASEN
Model Number:
ZD-3000V

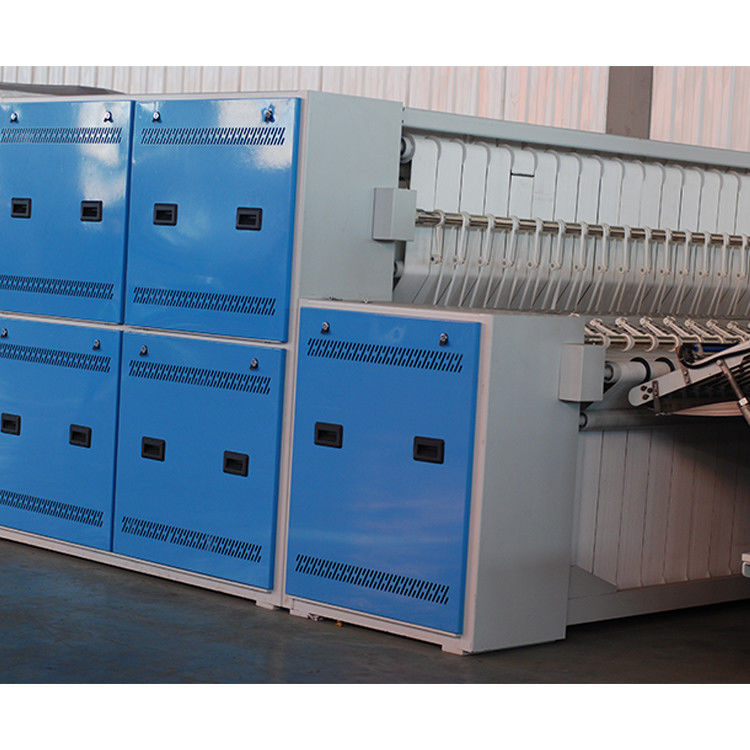

The T-Shirt Sheet Metal Folding Machine offers an impressive maximum folding rate of 50 meters per minute. It is specifically designed to handle the folding of T-shirts and sheets with precision and efficiency. The "Five-Foldring" feature allows for multiple folds, adding to its functionality. With a 3000mm capacity, it can accommodate large-sized items. This machine is engineered with high-quality sheet metal, ensuring durability and stability. It is ideal for industrial or commercial settings where fast and accurate folding is crucial. Whether for a laundry facility or a manufacturing plant, this folding machine provides a reliable solution to streamline the folding process and increase productivity. Its advanced design and capabilities make it a standout in the field of folding equipment.
| Attributes | ZD-3000V | ZD-3300V | ZD-3300V-4 | G/ZD-3300V-4 |
|---|---|---|---|---|
| Max Feeding Width (mm) | 3000 | 3300 | 3300 | 3300 |
| Maximum fold length (mm) | 3600 | 3600 | 3600 | 3600 |
| Folding Speed (m/min) | 0-60 | 0-60 | 0-60 | 0-60 |
| Rated-Voltage (v/p/Hz) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Power (kw) | 1.47 | 1.47 | 1.47 | 2.5 |
| Air Pressure (Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Compressed air consumption (L/min) | 60 | 60 | 60 | 60 |
| Total weight (kg) | 1580 | 1600 | 1600 | 1600 |
| Dimension WxDxH (mm) | 4255×3052×1900 | 4255×3052×1900 | 4255×3052×1900 | 4255×3052×1900 |
