Stainless Steel Professional Heavy Duty Laundry Washing Machine for Clean-In-Place CIP

Stainless Steel Professional Heavy Duty Laundry Washing Machine for Clean-In-Place CIP

stainless steel CIP washing machine

heavy duty washer extractor

professional laundry machine with warranty

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

ISO9001:2008

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Free Spare Parts, Online Support
Power:
7.5kw
Weight:
2800kg
Size:
1750*1800*1980mm
Capacity:
15kg,20kg,30kg,50kg,70kg,100kg,150kg
Function:
Washing Extracting
Heating:
Steam Heating Or Electric Heating
Used For:
Hotel.factory .laundry Hospital
Material:
Stainless Steel
Power Supply:
380/3/50 (V/p/Hz)
Feature:
Critical Cleaning
Cleaning Process:
Hot Water Cleaning
Cleaning Type:
Clean-In-Place (CIP)
Port:
SHANGHAI
Highlight:

stainless steel CIP washing machine

,

heavy duty washer extractor

,

professional laundry machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$10,000.00/sets >=1 sets
Packaging Details
WOODEN PACKAGE
Supply Ability
100 Set/Sets per Month
Product Description

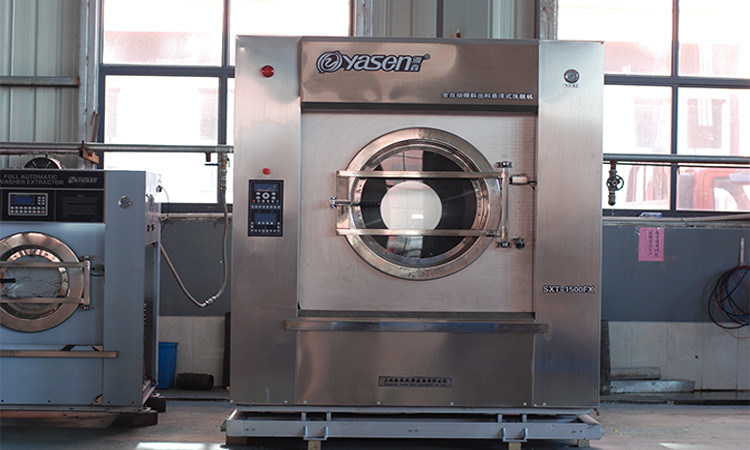

Stainless Steel Professional Heavy Duty Laundry Washing Machine for Clean-In-Place CIP

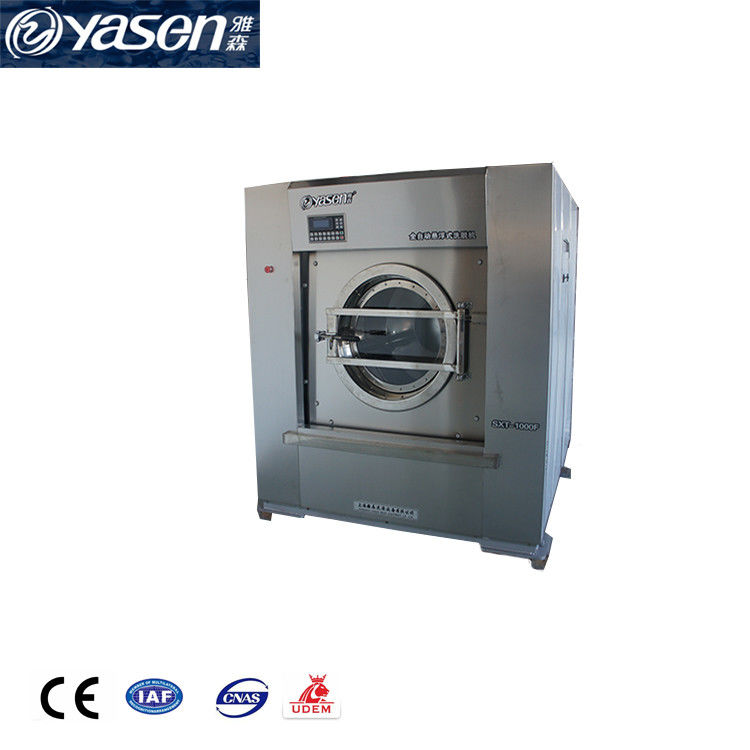

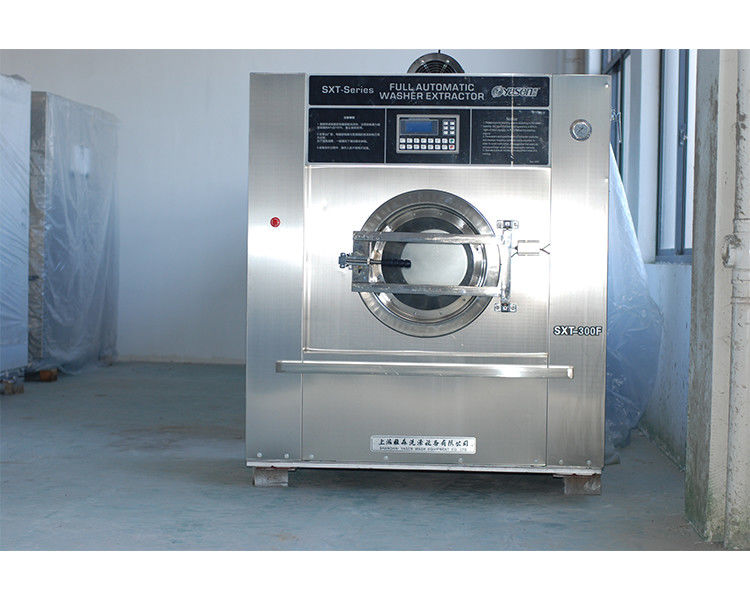

Stainless steel industrial washing machine front view Industrial washer-extractor side view Washing machine technical diagram Heavy duty laundry machine operation
Applications

SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is used for washing cotton, wool, chemical fiber, and other fabrics.

Product Overview

Full-automatic control by computer control system. SXT-F washer-extractor has professional computer control system, excellent capacity and super function. It contains 30 programmable procedures and 5 standard programs, with all design optimized for user convenience.

Key Features
  • High Strength & Long Durability: Creative stainless steel drum design ensures prolonged machine lifespan during overload situations
  • Advanced Construction: Outer vat made by stainless steel (50-150 kg) resists corrosion and provides high stability
  • Precision Engineering: High-strength shaft design effectively reduces transverse vibration moment
  • Patented Seal Technology: Double water-proof design with imported fluorine rubber seal material protects bearings and extends lifespan
  • Minimal Vibration: Scientifically balanced suspended object design with 98% vibration-reducing efficiency
  • Frequency-Conversion Drives: Endless speed adjusting for stable, quiet operation
  • Safety Features: Patent technology door-lock union ensures operational safety

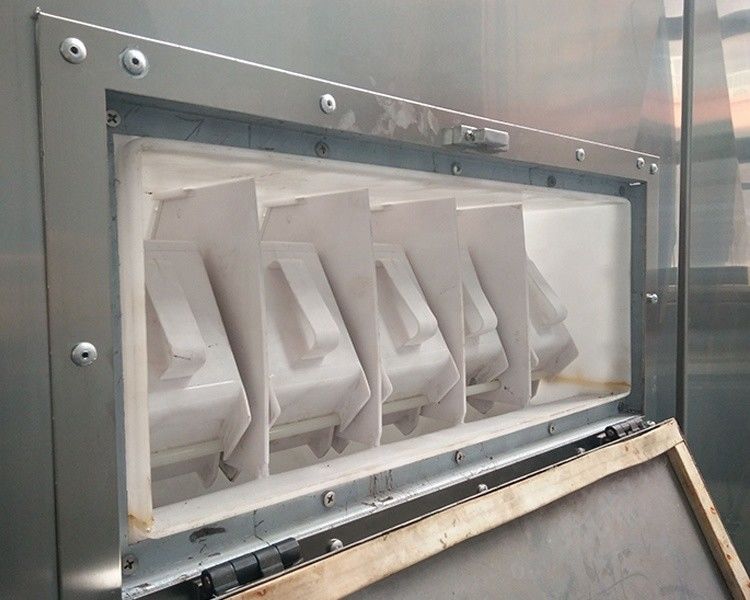

  • Automated Detergent System: Five compartment automatic detergent adding with corrosion-proof nylon construction
  • User-Friendly Design: Larger diameter loading door for convenient loading and unloading
  • Heating Options: Steam heating and hot water heating capabilities
After-Sales Service
  • One-year machine warranty
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Overseas engineer service available
Installation & Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service under contract
Warranty

Main spare parts (except consumable accessories) under ONE YEAR warranty with defects from manufacturer by free shipping.

Product Specifications
Model SXT-150F SXT-200F SXT-300F SXT-500F SXT-700F SXT-1000F SXT-1500F
Rated Capacity (kg) 15 20 30 50 70 100 150
Drum Dimension (mm) Φ636×472 Φ730×450 Φ900×470 Φ970×650 Φ1200×620 Φ1200×840 Φ1470×880
Washing Speed (r/min) 42 42 40 40 35 35 30
Extracting Speed (r/min) 850 800 770 740 670 670 610
Rated Voltage (V) 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V
Motor Power (kw) 1.5 2.2 3 4 7.5 7.5 15
Water Inlet (lnch) G3/4" G1" G1" G1.5" G1.5" G1.5" G2"
Steam Inlet (lnch) G1/2" G1/2" G3/4" G1" G1" G1" G1.5"
Electric Heating Power (kw) 9 18 27 36 54 72 -
Steam Pressure (Mpa) 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5
Steam Consumption (kg/kg) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Drainage Dimension (mm) Φ60 Φ60 Φ80 Φ90 Φ127 Φ127 Φ127x2
Air Pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Noise dB(A) <78 <78 <78 <78 <78 <78 <78
Dimension W×D×H (mm) 1150×1050×1510 1200×1100×1620 1340×1450×1750 1510×1600×1780 1750×1800×1980 1920×2150×1990 2150×2420×2350
Net Weight (kg) 450 550 1300 1500 2800 3200 5500

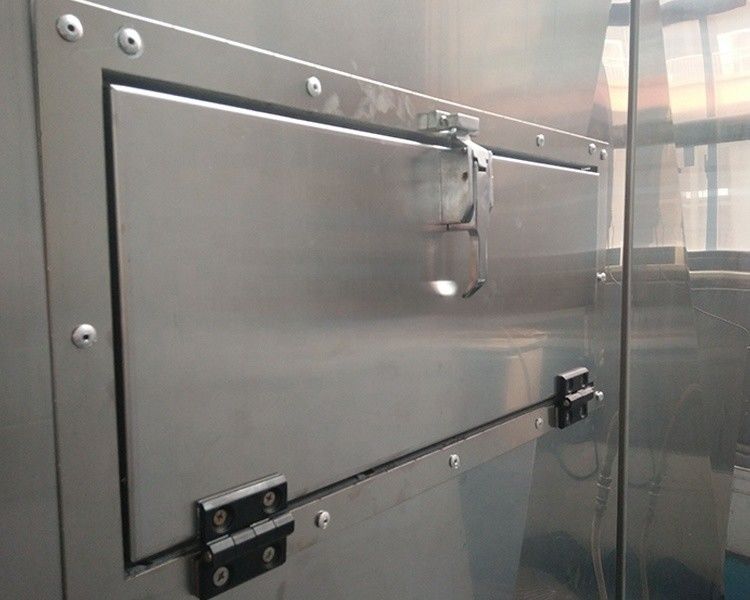

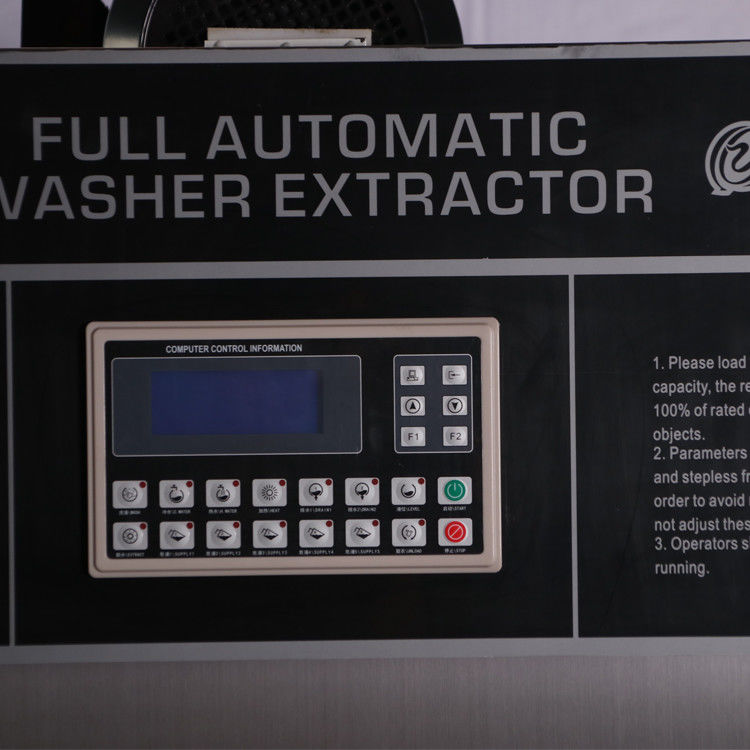

Industrial washing machine interior view Machine control panel diagram Heavy duty washer installation Stainless steel construction detail
