Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation

Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation

Japanese commercial washing machine 15kg

washer extractor 25kg free standing

tiltable installation commercial washing machine

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

CE,ISO9001:2008

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Free Spare Parts, Online Support, Engineers Available To Service Machinery Overseas
Power:
1.5kw
Weight:
450kg
Size:
1100*1000*1550mm
Capacity:
15kg,20kg,30kg,50kg,70kg,100kg,150kg
Heating Type:
Steam Or Electicity Heating
Feature:
Critical Cleaning/Residue Free
Material:
Stainless Steel 304,corrosion Free
Cleaning Process:
Hot Water Cleaning
Cleaning Type:
Clean-In-Place (CIP)
Voltage:
220V,380V
Installation:
Free Standing/Tiltable
Port:
SHANGHAI
Highlight:

Japanese commercial washing machine 15kg

,

washer extractor 25kg free standing

,

tiltable installation commercial washing machine

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$3,000.00/sets >=1 sets
Packaging Details
Wooden packaging for Washing Machine
Supply Ability
100 Set/Sets per Month commercial laundry washer
Product Description
Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation
Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation 0
Applications

SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is designed for washing cotton, wool, chemical fiber, and other fabrics.

Product Features

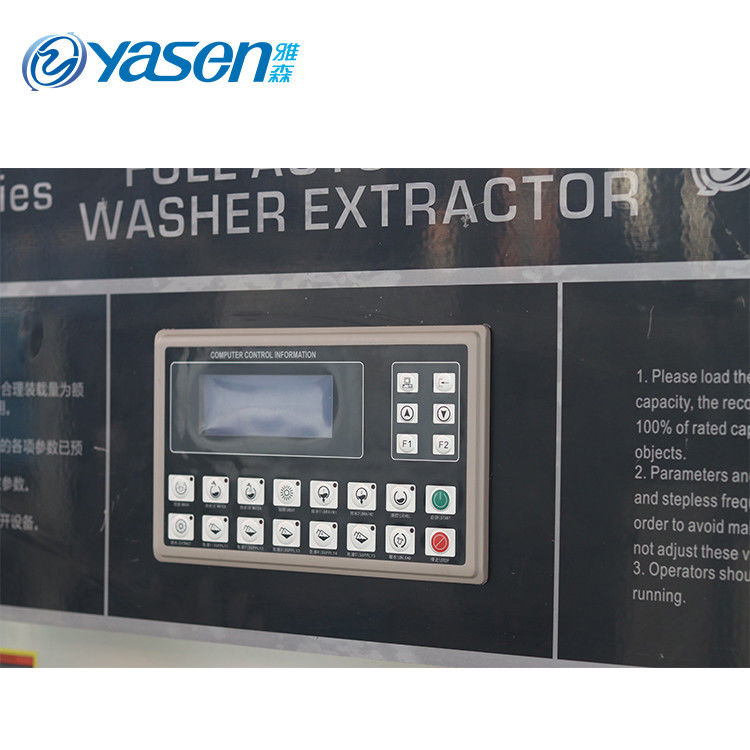

Fully Automatic Computer Control System

SXT-F washer-extractor features professional computer control system with excellent capacity and superior functionality. It includes 30 programmable procedures and 5 standard programs, all designed with user-friendly operation.

  • User control over work liquid-level, wash temperature, and wash time
  • Efficiently meets washing requirements in different situations
High Strength & Long Durability
  • Creative stainless steel drum design prolongs machine lifespan during overload situations
  • Advanced limit principle design with stainless steel outer vat (50-150 kg models)
  • High corrosion resistance and stability
  • High-strength big shaft-pedestal and high-accuracy short shaft design reduces transverse vibration
  • High-precision bearing core extends lifespan and durability
  • State invention patent seal technology with double water-proof design
  • Imported fluorine rubber seal material with special compartment design
Industry-Leading Vibration Control
  • Scientifically added overload weight combines gravity and vibration source center
  • Achieves perfect balance of suspended object
  • High-efficiency vibration-proof springs with 98% vibration reduction rate
Excellent Design & Fine Production
  • Frequency-conversion drives with endless speed adjustment
  • Stable, quiet operation
  • High-quality bearings for long lifespan
  • Patent technology seal design resists high temperature and super acid-alkali
  • Stainless steel panel with high corrosion proof (back panel galvanized)
  • Patent technology safe door-lock union ensures safety

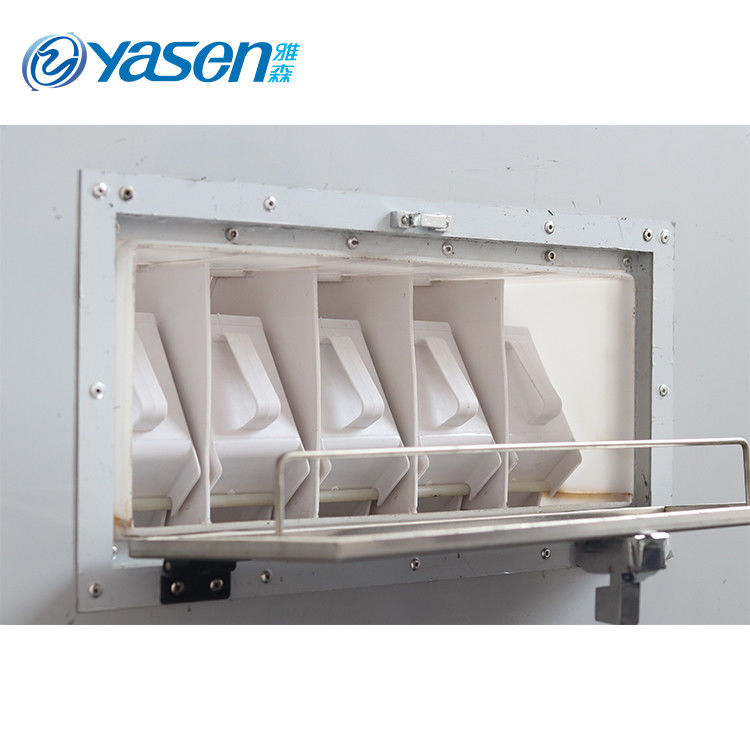

  • Five compartment automatic detergent adding system
  • Nylon combination injection moulding structure with high corrosion proof
  • Larger diameter loading door with ergonomic design reduces labor strength
  • Steam heating and hot water heating options
After Sales Service
  • 1-year whole machine guarantee
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Engineers available for overseas service
Product Parameters

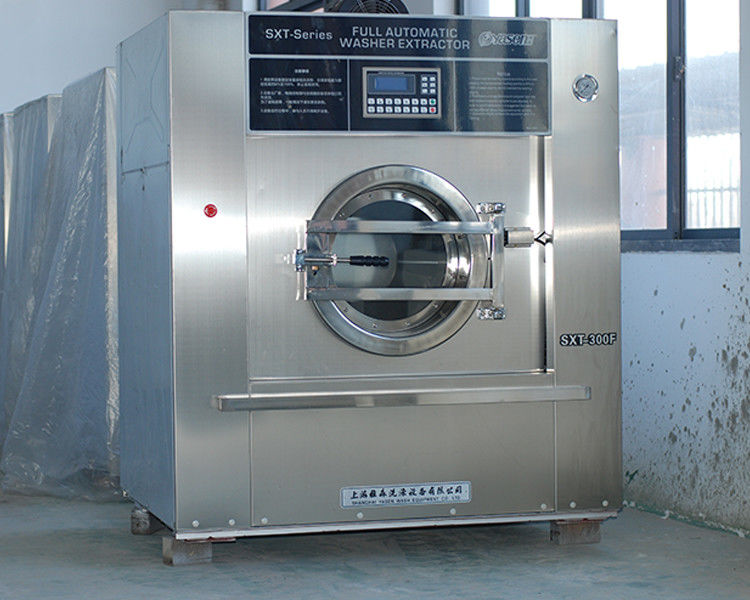

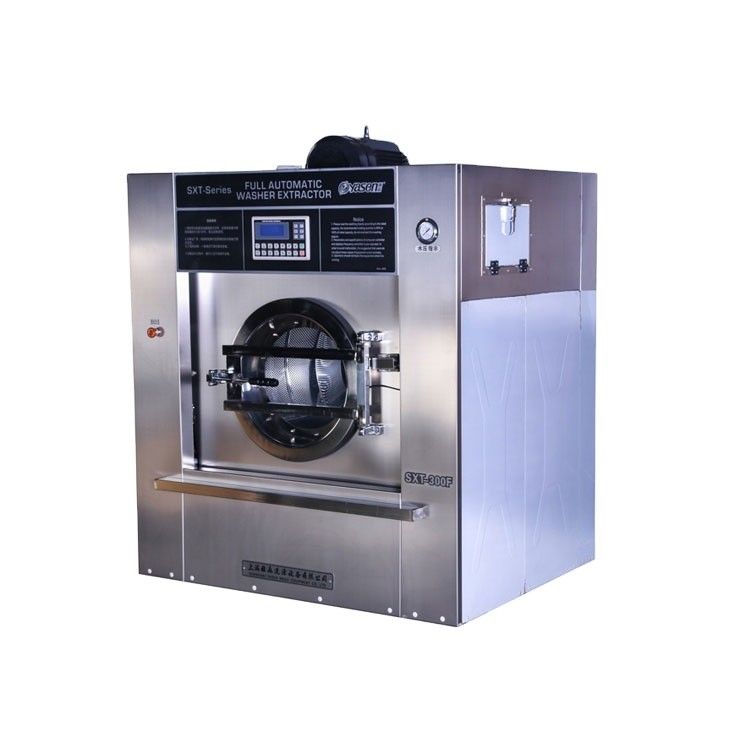

Name: Automatic Industrial Washer-Extractor
Attributes SXT-200F SXT-300F SXT-500F SXT-700F SXT-1000F SXT-1500F
Rated Capacity (kg) 20 30 50 70 100 150
Drum Dimension (mm) Φ730×450 Φ900×470 Φ970×650 Φ1200×620 Φ1200×888 Φ1470×880
Washing Speed (r/min) 42 40 50 35 35 30
Extracting Speed (r/min) 800 770 740 670 670 610
Rated Voltage (V) 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415
Motor Power (kw) 2.2 3 4 7.5 7.5 15

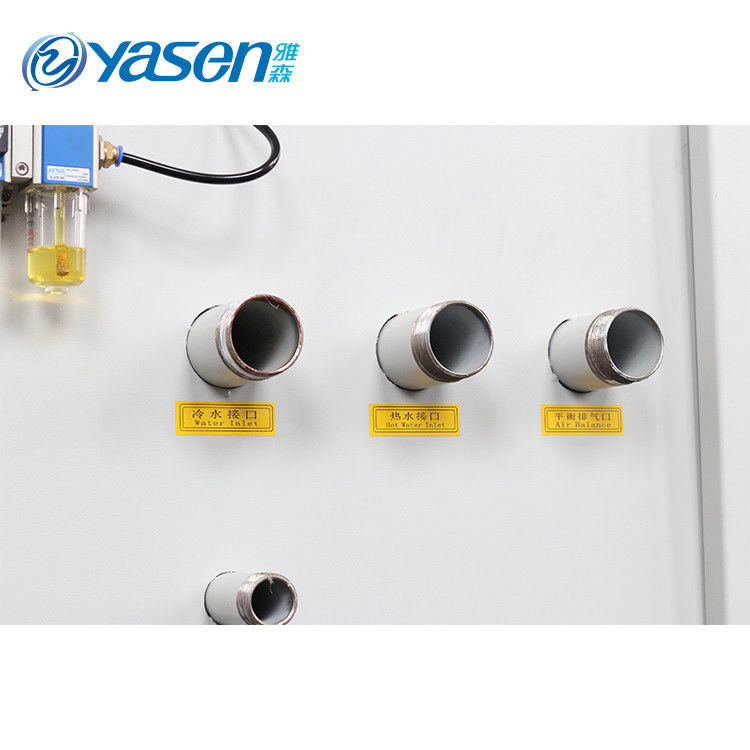

Water Inlet (lnch) G1" G1" G1.5" G1.5" G1.5" G2"
Steam Inlet (lnch) G1/2" G3/4" G1" G1" G1" G1.5"
Electric Heating Power (kw) 18 27 36 54 72 -
Steam Pressure (Mpa) 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5
Steam Consumption (kg/kg) 0.5 0.5 0.5 0.5 0.5 0.5
Drainage Dimension (mm) Φ60 Φ80 Φ90 Φ127 Φ127 Φ127x2

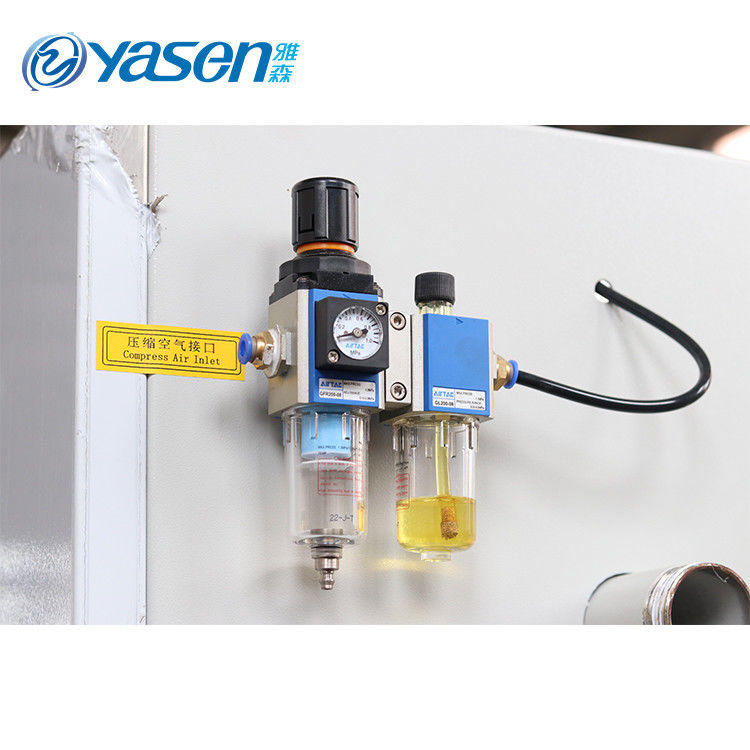

Air Pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Noise dB(A) <78 <78 <78 <78 <78 <78
Dimension W×D×H (mm) 1025×1000×1400 1340×1380×1700 1570×1455×1780 1750×1800×1980 1920×2150×1990 2150×2420×2350
Net Weight (kg) 680 1500 2200 2800 3200 5500
Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation 1 Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation 2
