1300kg Stainless Steel Foldimate Laundry Folding Coin Press Machine Line

1300kg Stainless Steel Foldimate Laundry Folding Coin Press Machine Line

stainless steel laundry folding machine

1300kg coin press washer

foldimate industrial washer extractor

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

CE,ISO9001:2008

Model Number:

SXT-150,200,300,500,700,1000F

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Free Spare Parts, Online Support
Power:
3kw
Weight:
1300kg
Size:
1340*1450*1750mm
Capacity:
20kg,50kg,70kg,100kg,150kg
Heating Type:
Steam Or Electicity Heating
Feature:
Critical Cleaning/Residue Free
Material:
Stainless Steel
Cleaning Process:
Hot Water Cleaning
Cleaning Type:
Clean-In-Place (CIP)
Industry Used:
Hotel And Laundry
Voltage:
380V
Port:
SHANGHAI
Highlight:

stainless steel laundry folding machine

,

1300kg coin press washer

,

foldimate industrial washer extractor

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$2,700.00 - $16,000.00/sets
Packaging Details
Wooden packaging for washer extractor
Supply Ability
20 Set/Sets per Month for washer extractor
Product Description

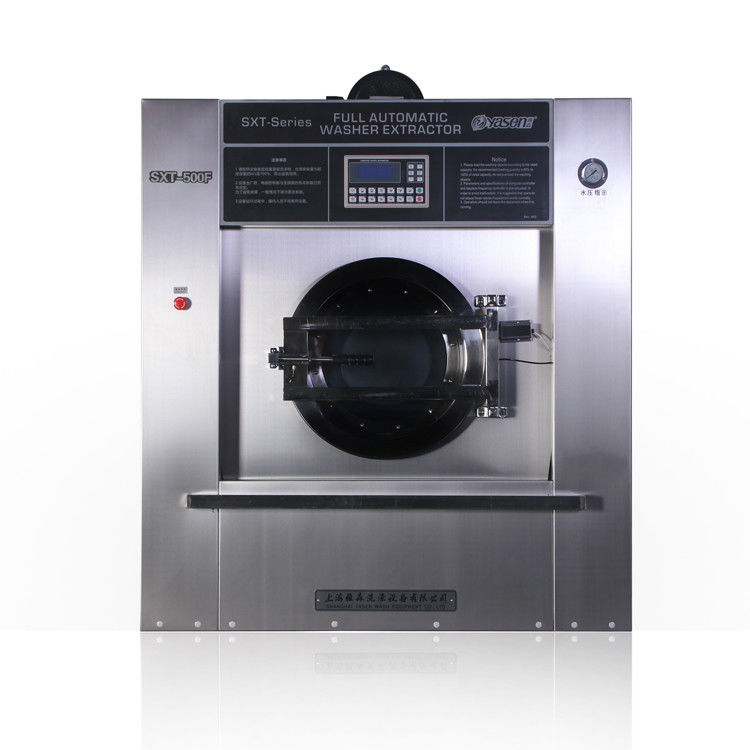

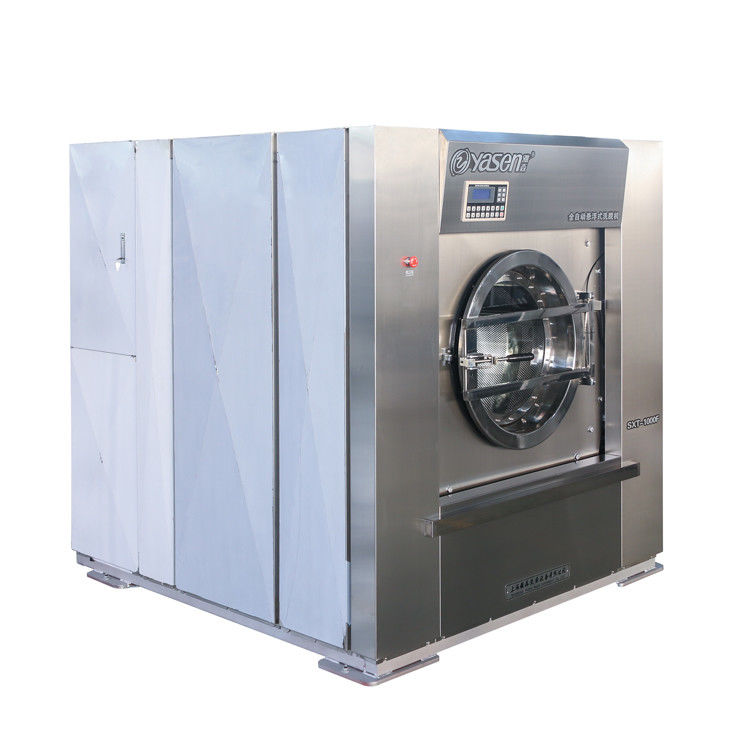

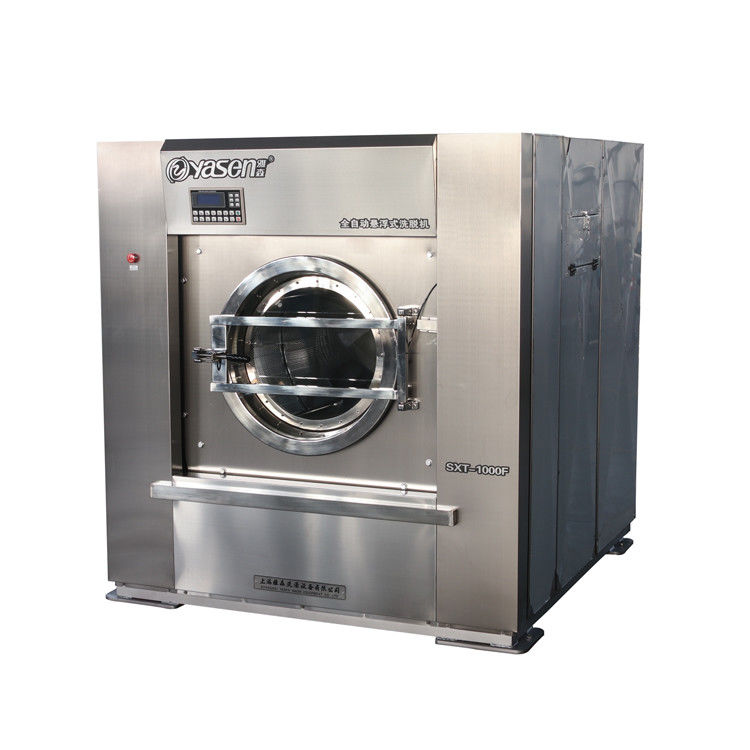

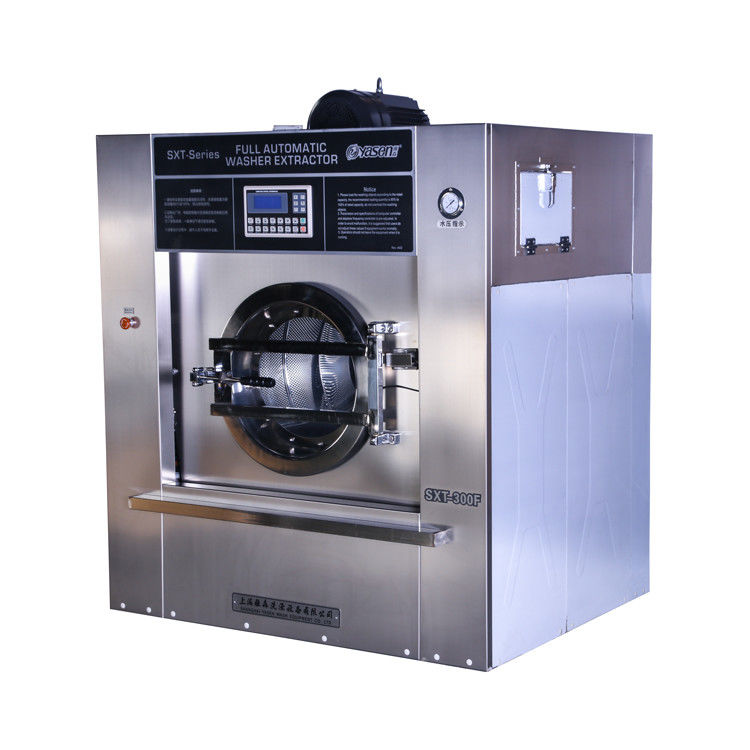

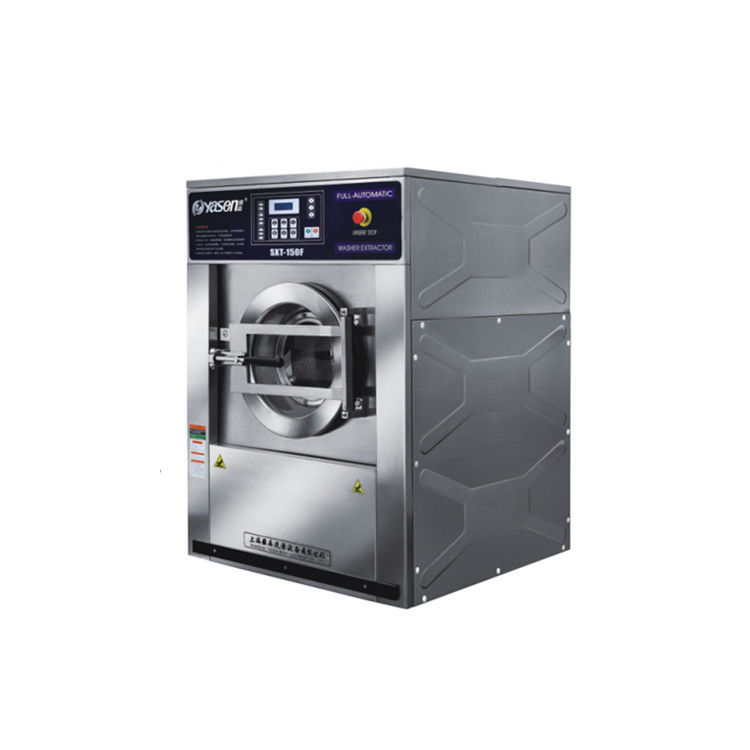

1300kg Stainless Steel Foldimate Laundry Folding Coin Press Machine Line
Applications

SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is designed for washing cotton, wool, chemical fiber, and other fabrics.

Product Overview

Full-automatic control by computer control system with professional programming capabilities and user-friendly design.

  • Computer Control System: Features 30 programmable procedures and 5 standard programs with intuitive user interface
  • Precise Control: User can control work liquid-level, wash temperature, and wash time to meet various washing requirements
Durability & Construction
  • Robust Structure: Creative drum design using excellent stainless steel ensures extended machine lifespan even during overload situations
  • Corrosion Resistance: Outer vat made from stainless steel (50-150 kg models) with advanced limit principle design
  • Stable Operation: High-strength shaft pedestal and high-accuracy short shaft design effectively reduce transverse vibration
  • Patented Seal Technology: State invention patent with double water-proof design using imported fluorine rubber seal material
Vibration Control
  • Advanced Balancing: Scientifically added overload weight combines gravity of suspended object with vibration source center
  • High Efficiency: Spring vibrationproof system with effective vibration-reducing rate up to 98%

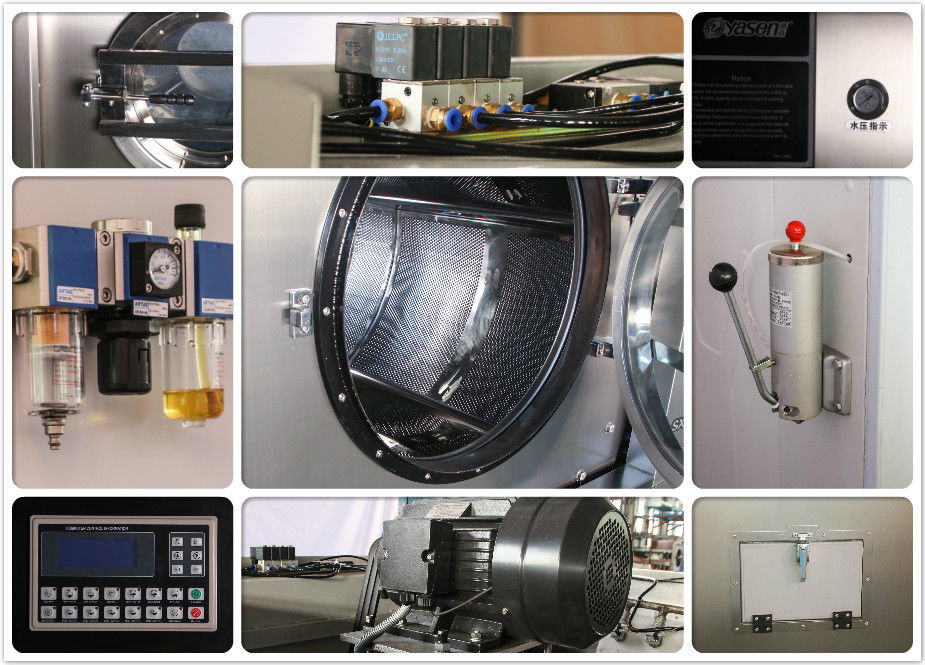

Design Features
  • Frequency Conversion Drive: Endless speed adjusting with stable, quiet operation
  • High-Quality Components: Long lifespan bearings and imported seal materials
  • Safety Features: Patent technology safe door-lock union design
  • Automated Detergent System: Five compartment automatic detergent adding with nylon combination structure
  • User-Friendly Design: Larger diameter loading door for convenient loading and unloading
  • Heating Options: Steam heating and hot water heating capabilities
After-Sales Service
  • One-year warranty for the complete machine
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Overseas engineer service available
Installation & Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service available under contract
Warranty

Main spare parts (excluding consumable accessories) under ONE YEAR warranty with defects from manufacturer, including free shipping.

Product Parameters
Model SXT-150F SXT-200F SXT-300F SXT-500F SXT-700F SXT-1000F SXT-1500F
Rated Capacity (kg) 15 20 30 50 70 100 150
Drum Dimension (mm) Φ636×472 Φ730×450 Φ900×470 Φ970×650 Φ1200×620 Φ1200×840 Φ1470×880
Washing Speed (r/min) 42 42 40 40 35 35 30
Extracting Speed (r/min) 850 800 770 740 670 670 610
Rated Voltage (V) 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V
Motor Power (kw) 1.5 2.2 3 4 7.5 7.5 15
Water Inlet (lnch) G3/4" G1" G1" G1.5" G1.5" G1.5" G2"
Steam Inlet (lnch) G1/2" G1/2" G3/4" G1" G1" G1" G1.5"
Electric Heating Power (kw) 9 18 27 36 54 72 -
Steam Pressure (Mpa) 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5
Steam Consumption (kg/kg) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Drainage Dimension (mm) Φ60 Φ60 Φ80 Φ90 Φ127 Φ127 Φ127x2
Air Pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Noise dB(A) <78 <78 <78 <78 <78 <78 <78
Dimension W×D×H (mm) 1150×1050×1510 1200×1100×1620 1340×1450×1750 1510×1600×1780 1750×1800×1980 1920×2150×1990 2150×2420×2350
Net Weight (kg) 450 550 1300 1500 2800 3200 5500
