Place of Origin:
Shanghai, China
Brand Name:
Yasen
Certification:
ce
Model Number:
HG-2000Z

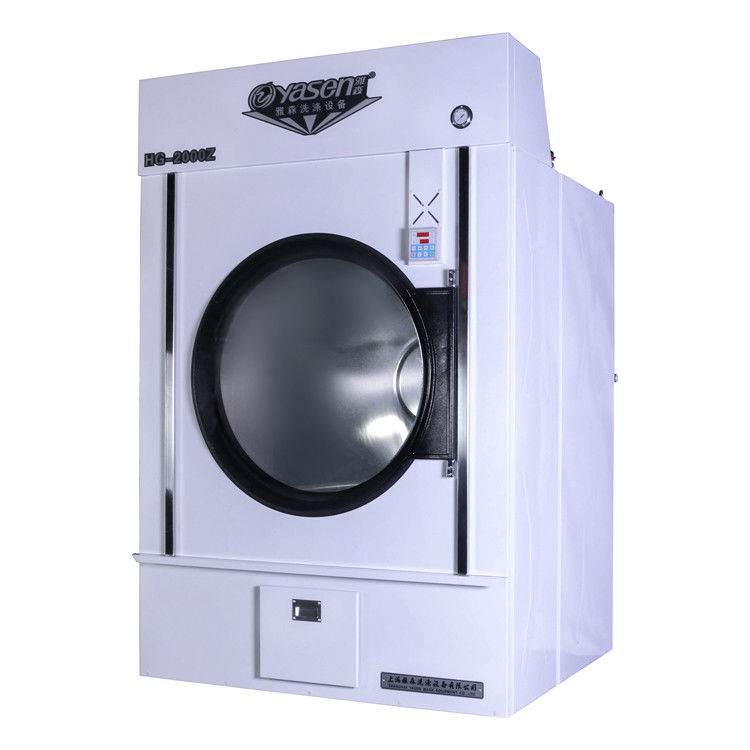

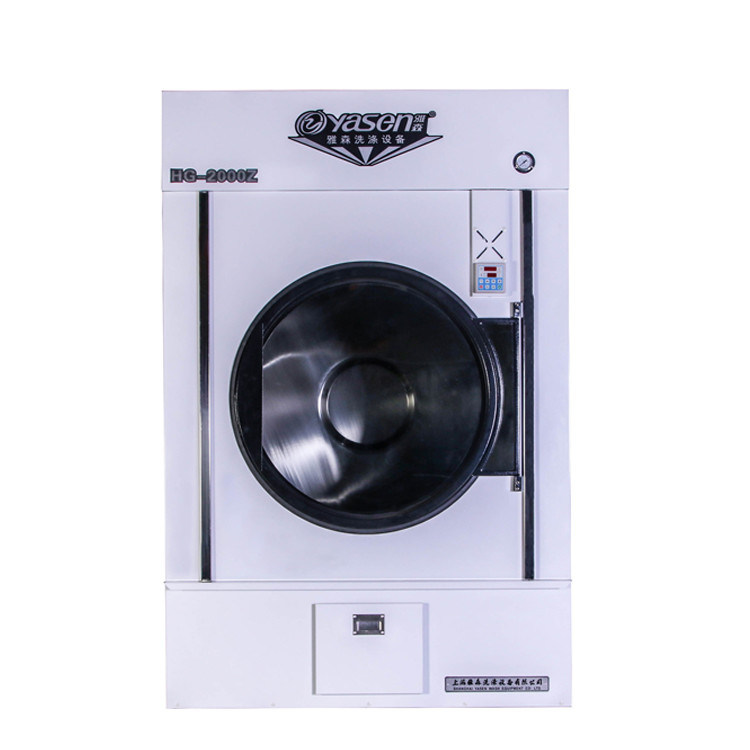

This Electric/Gas full-automatic Industrial Tumble Dryer with 25kg capacity is a sophisticated piece of equipment designed for demanding industrial applications. Offering flexible power options (electricity or gas), this fully automated system minimizes human intervention while delivering precise, efficient drying performance.
The 25kg capacity enables large-scale industrial operations to process significant material volumes in single batches. Engineered for continuous, reliable operation in rigorous environments, this dryer features durable construction and consistent performance to ensure timely, effective drying processes.
| Specification | Unit | HG-300 | HG-500 | HG-700 | HG-1000Z | HG-1400 | HG-2000Z |
|---|---|---|---|---|---|---|---|
| Rated Capacity | kg | 15 | 25 | 35 | 50 | 70 | 100 |
| Diameter | mm | 800 | 970 | 970 | 1180 | 1280 | 1450 |
| Diameter Depth | mm | 600 | 670 | 1000 | 870 | 950 | 1050 |
| Drum Speed | rpm | 48 | 40 | 38 | 35 | 30 | 28 |
| Power Supply | V/p/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Motor Power | kW | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
| Fan Motor Power | kW | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5×2 |
| Heating Type | Electricity / Steam Heating | ||||||
| Electric Heating Power | kW | 13 | 24 | 32 | 39 | 50 | 83 |
| Steam Pipe Diameter | mm | G3/4" | G1" | G1" | G1.5" | G2" | G2" |
| Steam Pressure | MPa | 0.4-0.6 | |||||
| Machine Weight | kg | 420 | 450 | 480 | 560 | 850 | 1250 |
| Dimension (W×D×H) | mm | 860x1140x1730 | 1060x1250x2000 | 1100x1500x2060 | 1310*1550*2200 | 1405*1560*2300 | 1660*1950*2550 |
The complete machine includes a 1-year warranty with lifelong technical support and guaranteed spare parts supply. Our engineers are available for overseas machinery service.
Main spare parts (excluding consumable accessories) are covered by a ONE YEAR warranty with free shipping for manufacturer defects.
| Products | Transport Method | Middle East | Africa | European & American Area | Asia |
|---|---|---|---|---|---|
| Products | Sea Transport (Door to Door) | 15-22 Days | 25-40 Days | 15-35 Days | 6-14 Days |
| Air Transport | 4-5 Days | 5-8 Days | 4-6 Days | 1-3 Days | |
| Spare Parts | DHL Express | 4 Days | 5-6 Days | 3-4 Days | 2 Days |
| FedEx | 5 Days | 6 Days | 4-5 Days | 3-4 Days | |
| UPS | 6 Days | 6 Days | 6-7 Days | 5-6 Days | |
| TNT | 6-7 Days | 6-7 Days | 5-6 Days | 4-6 Days |
