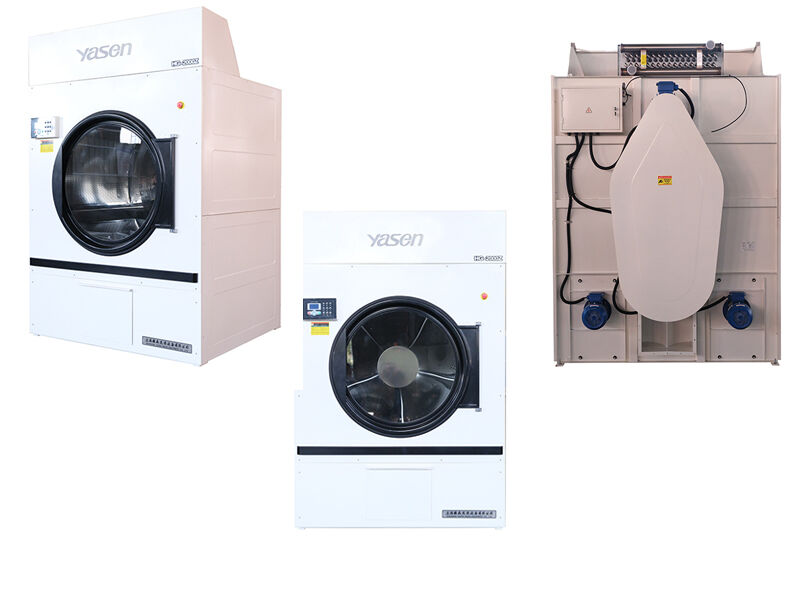

120kg High-Capacity Tumble Dryer

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Request A Quote

Product Details

Product Name:

120kg High-Capacity Tumble Dryer

Steam Pressure(Mpa):

0.4-0.6

Application:

High-Capacity Tumble Dryer

Rated Voltage(V):

220/380 /415

Heating Type:

Steam / Gas / Electric

Rated Capacity(kg):

120KG

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$2,500.00 - $7,500.00/sets

Packaging Details

Wooden package for washing machine

Supply Ability

100 Set/Sets per Month

100kg Steam Industrial Tumble Dryer

Get Best Price

100kg Hotel Linen Dryer Industrial Tumble Dryer

Get Best Price

120kg Laundry Tumble Dryer

Get Best Price

100 kg Steam Electric Industrial Tumble Dryer Industrial Clothes Dryer

Get Best Price

Contact Now

Product Description

120kg High-Capacity Tumble Dryer

The 120kg Industrial Tumble Dryer is a high-performance drying hub engineered for centralized laundry plants, 5-star hospitality sectors, and healthcare facilities. Designed for continuous, high-intensity throughput, this model balances massive 120kg load capacity with precision thermal control, ensuring your laundry operation maintains maximum productivity with optimized overhead.

Key Technical Advantages

High-Efficiency Thermal Management
Engineered to operate at 0.4 - 0.6 MPa steam pressure, the heat exchange system provides rapid and uniform temperature ramp-up. For gas-configured units, the optimized burner maintains a consumption rate of 8.5 m³/h, delivering an industry-leading energy-to-load ratio that directly lowers your "cost-per-kg" of processed linen.
Dual-Source Versatility & Global Compatibility
Supporting multiple industrial voltage standards (220V/380V/415V), this unit is ready for seamless integration into international power grids. Its dual-source capability (Steam/Gas) allows laundry managers to choose the most cost-effective heating medium based on local utility prices.
Industrial-Grade Airflow & Moisture Evacuation
Utilizing a high-velocity negative pressure system, the dryer forces heated air through the core of the 120kg rotating mass. This prevents "wet spots" in heavy-duty items like bath mats and duvets, ensuring a 100% dry finish across every cycle.
Textile Integrity Preservation
Precision sensors and a programmable Cool-Down phase prevent fiber brittleness and thermal shock. By gradually lowering the temperature at the end of the cycle, the machine reduces permanent creasing, significantly cutting down labor time at the flatwork ironing station.

Technical Specifications

Parameter	Industrial Standard	Specification Detail
Rated Capacity	Heavy-Load Processing	120 kg (Dry Weight)
Gas Consumption	High-Efficiency Rating	8.5 m³/h
Steam Pressure	Optimal Thermal Gradient	0.4 - 0.6 MPa
Rated Voltage	Multi-Phase Support	220V / 380V / 415V
Construction	Corrosion Resistance	Industrial-grade SUS304 Drum

Professional Maintenance & Operational Insights

To maintain peak performance and equipment longevity, follow these expert maintenance protocols:

Daily: Airflow Optimization
A 120kg load generates substantial lint. To maintain the 8.5 m³/h gas efficiency, the lint screen must be cleared every 3-4 cycles. Obstructed airflow forces the blowers to work harder, extending drying times and increasing utility costs.
Weekly: Steam Trap & Burner Diagnostics
For steam models (0.4-0.6 MPa), use a temperature differential test to ensure the steam trap is not bypassed or blocked. For gas models, a blue flame signifies complete combustion, preventing carbon buildup and ensuring the cleanest possible air for your linens.
Monthly: Drive System Calibration
Check the tension of the main drive belts. Given the massive 120kg weight, any slippage leads to uneven drum rotation and energy waste. Keeping belts calibrated ensures a consistent mechanical action for uniform drying.

Laundry Operations: Frequently Asked Questions

How does the 8.5 m³/h gas consumption affect my daily OpEx?

This consumption rate is the peak rating for the initial heating phase. Once the drum reaches the set temperature, our modulating system reduces gas flow. For a standard 120kg load of hospitality towels, this results in a highly competitive utility cost per cycle compared to legacy equipment.

Is the 0.4-0.6 MPa steam pressure sufficient for heavy hospital linens?

Absolutely. This pressure range is the "sweet spot" for industrial laundry. It provides enough thermal energy to evaporate moisture rapidly from dense medical textiles without damaging the high-tensile fibers required for healthcare standards.

What is the estimated cycle time for a full 120kg load?

Depending on the residual moisture content (RMC) from your washer-extractor, a standard cycle for blended fabrics typically ranges between 35 and 50 minutes. In a 24/7 operation, one unit can reliably process over 1,200kg of dry laundry per 8-hour shift.

Product Parameters

Name: Tumble Dryer	HG Series Models
Name: Tumble Dryer	HG-300	HG-400	HG-500	HG-700	HG-1000	HG-1400	HG-2000	GTH-120Z
Rated Capacity (kg)	15	20	25	35	50	70	100	120
Drum Dimension (mm)	Φ800x600	Φ900x650	Φ970x670	Φ970x1000	Φ1180x870	Φ1280x950	Φ1450×1050
Motor Power (kw)	0.55	0.55	0.75	0.75	1.1	1.5	2.2
Drying Speed (r/min)	48	45	40	38	35	30	28
Fan Power (kw)	0.55	0.55	0.75	0.75	1.1	1.5	1.5x2
Heating Power (kw)	13	18	24	32	39	50	83
Rated Voltage (V)	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415
Steam Pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Consumes of Steam (kg/h)	42	42	70	98	120	180	250
Steam Inlet (Inch)	G3/4"	G3/4"	G1"	G1"	G1.5"	G2"	G2"
Gas Consumption (m³/h)								8.5
Gas Inlet (Inch)								G1"
Dimension (L.W.H) (mm)	850x1100x1600	880x1170x1650	1060x1250x2000	1100x1500x2060	1310x1550x2200	1405x1560x2300	1660x1950x2550
N.W. (kg)	420	430	450	480	560	850	1250
