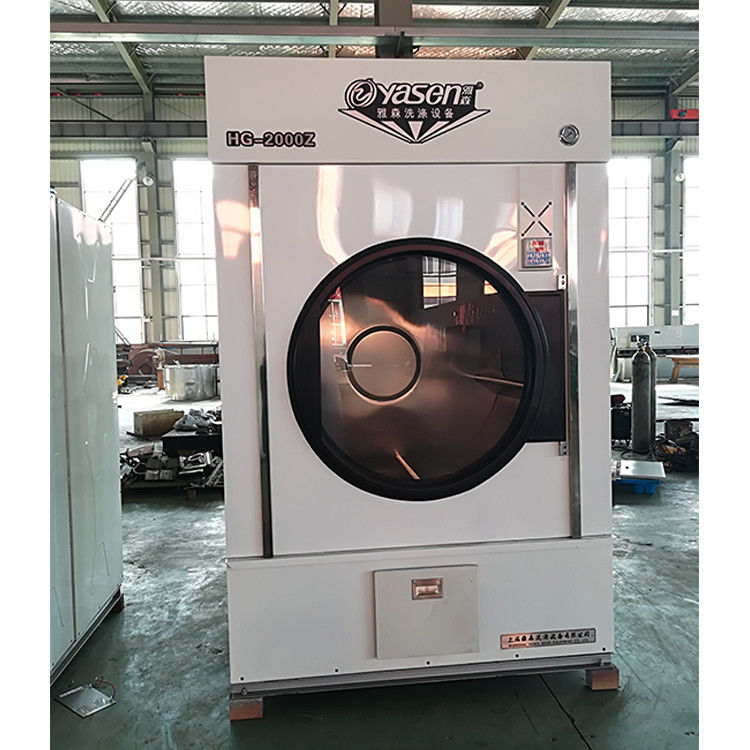

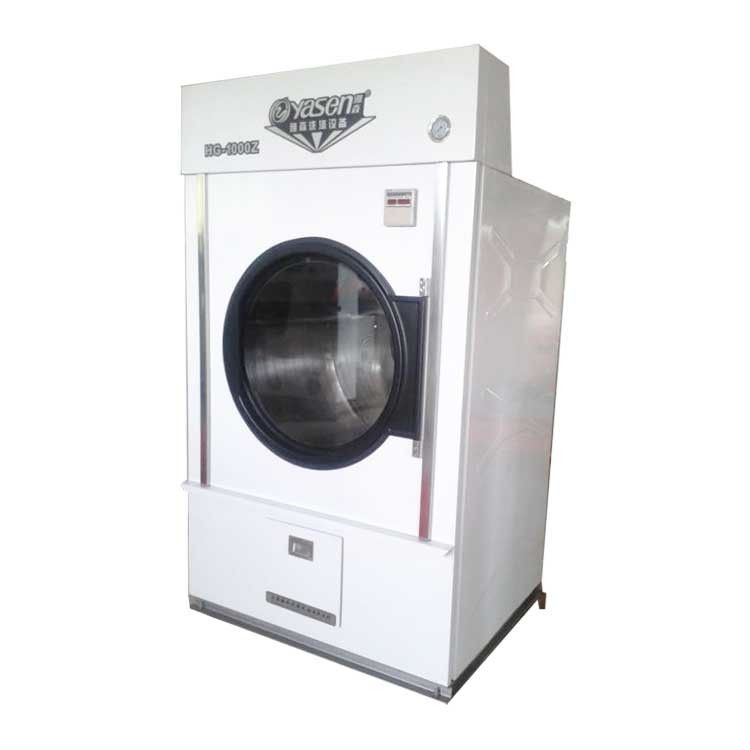

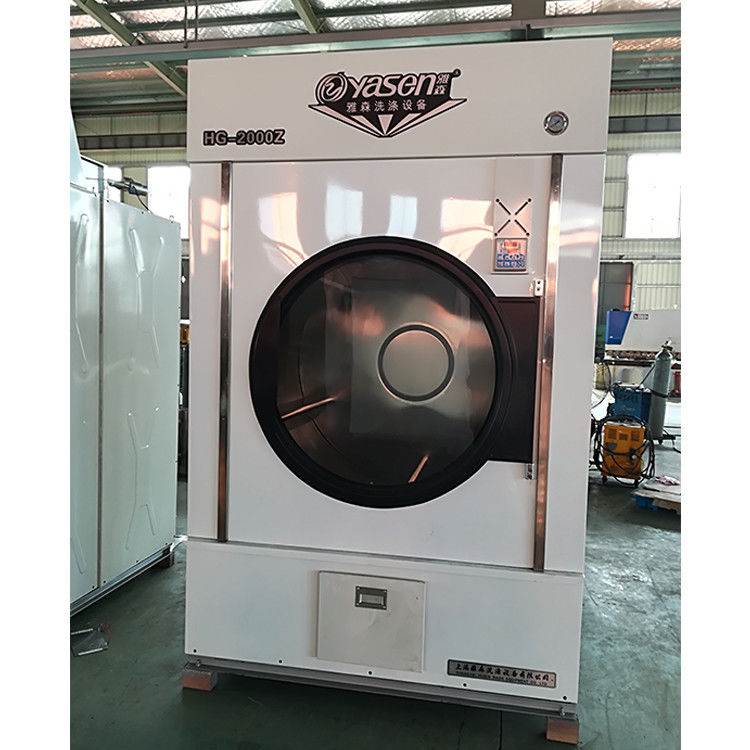

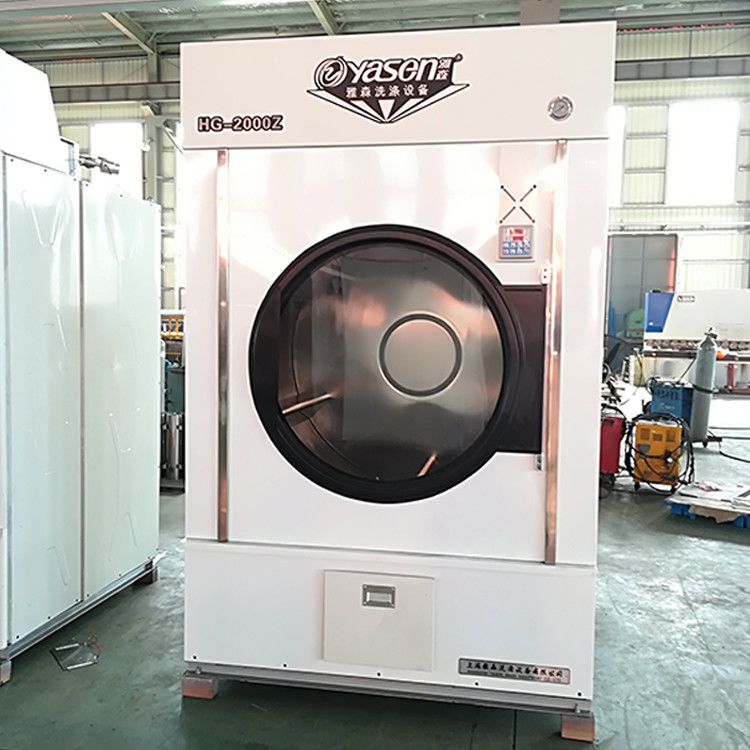

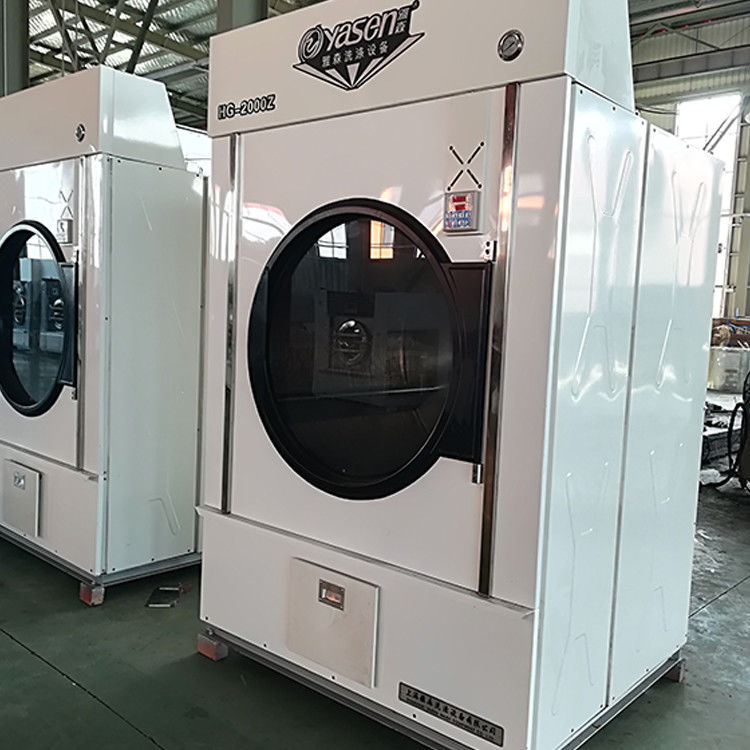

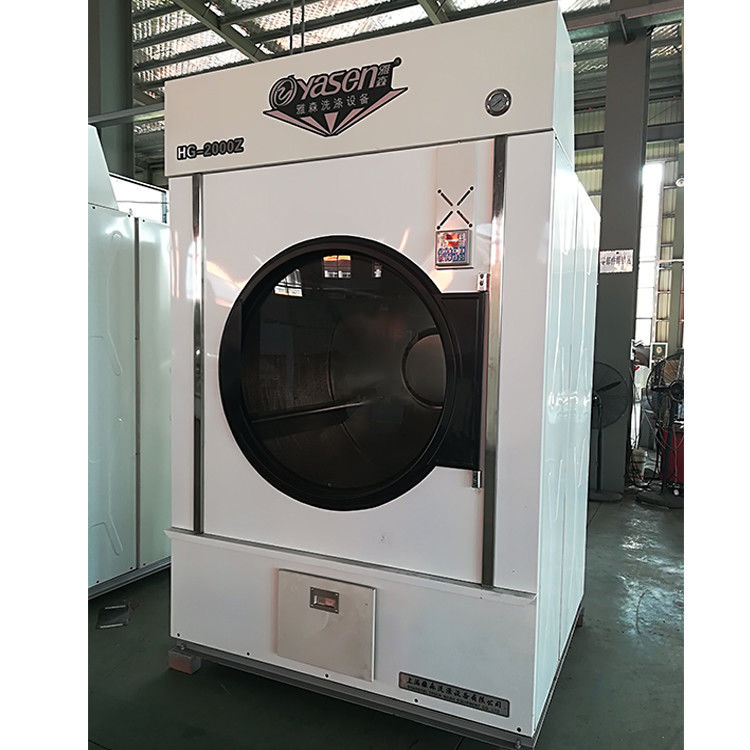

Gas Tumble Dryer 50kg Capacity Durable Design Clothes Tumble Dryer
Here is a Gas Tumble Dryer with a remarkable 50kg capacity. It features a highly durable design. This dryer is specifically engineered to handle a large volume of clothes. The 50kg capacity allows for the efficient drying of a significant quantity of laundry in a single cycle. The durable design ensures that it can withstand the rigors of frequent and continuous use. It is built to last and provide reliable performance over an extended period. The Gas Tumble Dryer is designed to tumble the clothes gently yet effectively, ensuring thorough drying while minimizing any potential damage to the fabrics. It is equipped with advanced features and components that contribute to its durability and functionality. The clothes tumble dryer is an essential piece of equipment for those who require a high-capacity and dependable drying solution, especially in settings where large amounts of laundry need to be processed regularly. With its 50kg capacity and durable design, it offers both efficiency and longevity, making it a valuable asset for any laundry operation.
Main parameters:
|
Specification
Model
|
Unit |
HG-300D
|
HG-1000Z |
HG-2000Z |
| Rated Capacity |
kg |
15 |
50 |
100 |
| Drum |
|
|
|
|
| Dimeter |
mm |
800 |
1180 |
1450 |
| Dimeter depth |
mm |
600 |
870 |
1050 |
| Drum Speed |
rpm |
48 |
35 |
28 |
| Power Supply |
V/p/Hz |
380/3/50 |
380/3/50 |
380/3/50 |
| Motor Power |
kW |
0.55 |
1.1 |
2.2 |
| Fan Motor Power |
kW |
0.55 |
1.1 |
1.5×2 |
| Heating Type |
|
Electricity Heating
|
Steam Heating |
Steam Heating
|
| Electric Heating Power |
kW |
13
——
|
-- |
83
——
|
| Steam Pipe Diameter |
mm |
G3/4" |
-- |
G2" |
| Steam Pressure |
MPa |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Machine Weight |
kg |
420 |
510 |
750 |
| Dimension (W×D×H) |
mm |
850X1100X1600 |
1310X1550X2200 |
1620×1860×2530
|
Computer control and simple operation
l Computer intelligence computer,presetting 5 automatic programs is allowable,user can set temperature,time,REV according to different sheet,taking care for sheet during drying.
Stable running and simple maintenance
l Transfer system adopts double belt transmission to ensure stable running and bring simple daily maintenance.
l Multiple-wing balance wind wheel design to control deposit floss,low noise,stable running.
Human design,safety and convenience
l Super diameter design for loading door to bring convenience for loading clothes and unloading clothes,door depth is connected with drum inter face to avoid damaging sheet.
l Drawer style of floss collection device to pull out for cleaning,so that reduce daily clean strength.
l Overall machine adopt advanced technology of static galvanization,excellent material of temperature-isolating to prevent heat from emanating for taking from machine face temperature.
Fast drying,high efficiency and energy-saving
l HG series dryer adopt heat exchange device of large specification to effectively expand heating area,fast raise temperature,short drying time.
l Inner drum adopt super design of high-density ventilation over Φ8mm to ensure heat cross sheet and equipped with ventilation of refined design,effectively utilize heat to make sheet become dry during short time and save energy consumption.
l Single and dual direction of drum rotation can be set,inter twist and shrinking of large piece of ‘sheet can be prevented to ensure high effective drying effect.
