Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity

Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity

flatwork ironing machine with high capacity

laundry equipment with 0.75-2.2 power

speed ironing machine for laundromat

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

CE; ISO

Contact Us
Request A Quote
Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity
Product Details
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Free Spare Parts, Online Support, Engineers Available To Service Machinery Overseas
Power:
0.75-2.2
Weight:
1500kg-4350kg
Size:
4040x2410x1420mm
No. Of Roller:
1-5
Max Feeding Width:
2500mm,3000mm,3300mm
Ironing Speed:
0-25m/min
Motor Power:
0.75kw-2.2kw
Heating Way:
Steam Or Electric
Roller Material:
Stainless Steel
Description:
Ironing Machine/ Flatwork Ironer
Usage:
Hotel Used Commercial Laundry Equipment
Port:
Shanghai Port
Highlight:

flatwork ironing machine with high capacity

,

laundry equipment with 0.75-2.2 power

,

speed ironing machine for laundromat

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$6,500.00/sets >=1 sets
Packaging Details
WOODEN PACKAGE
Supply Ability
50 Set/Sets per Month
RELATED PRODUCTS
Good price Corrosion Free 150kg Industrial Washing Machine for Hot Water Cleaning and Drying online

Corrosion Free 150kg Industrial Washing Machine for Hot Water Cleaning and Drying

Get Best Price
Good price Electric Heating Commercial Coin Operated Stacked Washer And Dryer Machine for Hotel online

Electric Heating Commercial Coin Operated Stacked Washer And Dryer Machine for Hotel

Get Best Price
Good price Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity online

Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity

Get Best Price
Good price 15-100kg Capability Laundry Clothes Dryer Machine with Steam and Electric Heating online

15-100kg Capability Laundry Clothes Dryer Machine with Steam and Electric Heating

Get Best Price
Contact Us
Contact Now
Product Description

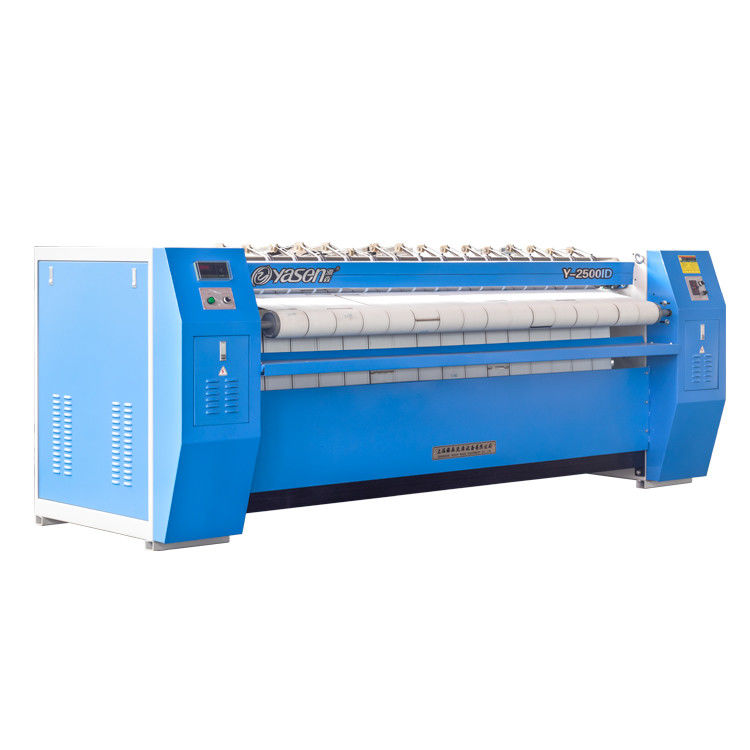

Flatwork Ironing Machine - Laundry Equipment
Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity 0 Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity 1
Applications
Y series roller automatic flat-work ironing machine is a new product developed with Sino-foreign technology. Suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. Used for ironing and finishing flat fabrics such as bedsheets, bedcovers, and tablecloths after washing and extracting.
Key Features
  • Efficiently irons fabrics with duplex and no trace, ensuring high-quality ironing results
  • Constructed with high-precision 304 stainless steel drum for long service life
  • Frequency conversion drives allow speed adjustment based on fabric type, improving efficiency
  • Programmable computer control with multi-language panel, large LCD screen, and user-friendly interface
  • Frequency-conversion motor, reducer, and chain transmission for smooth operation
  • Equipped with buffer and auto-adjustment conveying system - no guide strips needed
  • Safe electrical-pneumatic design with emergency stop function for operator safety
Technical Specifications
Attributes Y-2500I Y-3000II Y-3300III
Max Feeding Width (mm) 2500 3000 3300
Rolls Quantity 1 2 3
Roll Diameter (mm) 800 800 800
Ironing Speed (m/min) 0-9 0-18 0-25
Electric Heating Power (kw) 27 64 96
Steam Pressure (Mpa) 0.3-0.6 0.3-0.6 0.3-0.6
Steam Consumption (kg/h) 120 250 320
Steam Inlet (Inch) G1.5" G1.5" G1.5"
Drain Outlet (Inch) G1.5" G1.5" G1.5"
Gas Consumption (m³/h) 6m³ 12m³
Gas Inlet (Inch) G1.5" G1.5"
Rated Voltage (V) 220/380/415 220/380/415 3P/380/50HZ
Motor Power (kw) 0.75 1.5 2.2
Dimension L×W×H (mm) 3540×1470×1420 4040×2410×1420 4340×3350×1420
Net Weight (kg) 1500 3050 4350
After-Sales Service
  • One-year warranty for the complete machine
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Overseas service engineers available
Installation and Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service under contract
Warranty
Main spare parts (excluding consumable accessories) are covered by a one-year warranty with free shipping for manufacturer defects.
