Intelligent Linens Sorting Integrated System

Intelligent Linens Sorting Integrated System

intelligent linens sorting system

IWS integrated washing system

linens sorting system with warranty

Contact Us
Request A Quote
Intelligent Linens Sorting Integrated System
Product Details
Rated Load Capacity:
≥150
Conveyor Belt Width:
1000mm
Power Supply:
380/3/50 V/Ph/Hz
Net Weight:
350KG
Conveyor Motor Power:
0.75×2 (Dual Motor)
Overall Dimensions (W×D×H):
3200/2850×2420×785
Payment & Shipping Terms
RELATED PRODUCTS
Good price Industrial Dryer Machines Tilting Discharge Tumble Dryers online

Industrial Dryer Machines Tilting Discharge Tumble Dryers

Get Best Price
Good price Iws Integrated Washing System-solutions online

Iws Integrated Washing System-solutions

Get Best Price
Good price Intelligent Linens Sorting Integrated System online

Intelligent Linens Sorting Integrated System

Get Best Price
Good price Laundry Conveyor Transfer Shuttle Cart online

Laundry Conveyor Transfer Shuttle Cart

Get Best Price
Contact Us
86-21-5789-9088
Contact Now
Product Description

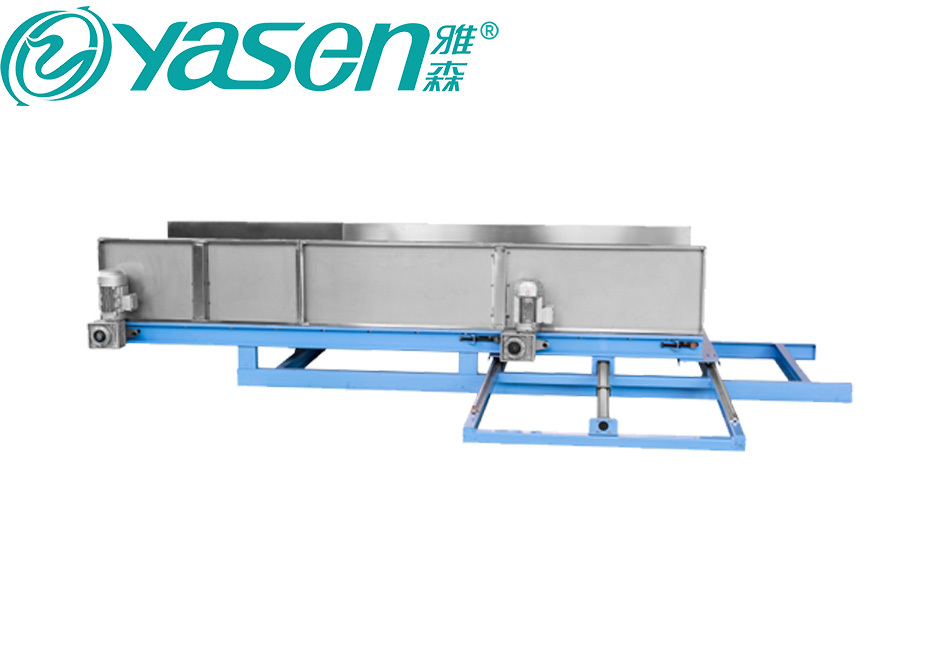

Intelligent Linens Sorting Integrated System
Product Specifications
  • Pneumatic Discharge Door Control with Position Sensing
    Advanced pneumatic discharge door control integrated with comprehensive opening/closing position detection sensors, ensuring precise operation and reliable performance.
  • Automated Linen Distribution
    When a washer is ready for loading, the corresponding discharge door on the distribution line automatically opens, transporting linens into the designated washing machine with seamless coordination.
  • Multi-Stage Overhead Conveyor System
    The load distribution line of the integrated washing system is a multi-section conveyor belt positioned on top of the washing machines, enabling efficient and continuous linen handling.

Technical Parameters
Parameter Unit FPX-3200/2850
Rated Load Capacity kg ≥150
Conveyor Belt Width mm 1000
Power Supply V/Ph/Hz 380/3/50
Conveyor Motor Power kW 0.75×2 (Dual Motor)
Net Weight kg 350
Overall Dimensions (W×D×H) mm 3200/2850×2420×785

System Integration & Industrial Application
This Intelligent Linens Sorting Integrated System serves as a crucial component in Yasen's integrated washing systems, automating the linen handling process from sorting to washing. The pneumatic discharge system with real-time position monitoring ensures perfect synchronization with washer operations, while the multi-stage conveyor design maximizes space utilization and processing efficiency.
Particularly suitable for large-scale laundry facilities in hotels, hospitals, and commercial washing plants, this system reduces manual intervention, minimizes errors, and enhances overall productivity through seamless automation and smart control features.
