Product Details

Rated Load Capacity:

≥150 Kg

Conveyor Belt Width:

1000mm

Net Weight:

650kg

Overall Dimensions (W×D×H):

6610×1260×4590 Mm

Application:

Integrated Washing System

Product Name:

Tunnel Washer System Loading Conveyor

Highlight:

tunnel washer system conveyor line

integrated washing system conveyor

tunnel washer loading conveyor

Payment & Shipping Terms

Weighing Machine Of The Washing System

Get Best Price

Tunnel Washer System Loading Conveyor Line

Get Best Price

Intelligent Linens Sorting Integrated System

Get Best Price

IWS Integrated Central Control System

Get Best Price

Contact Now

Product Description

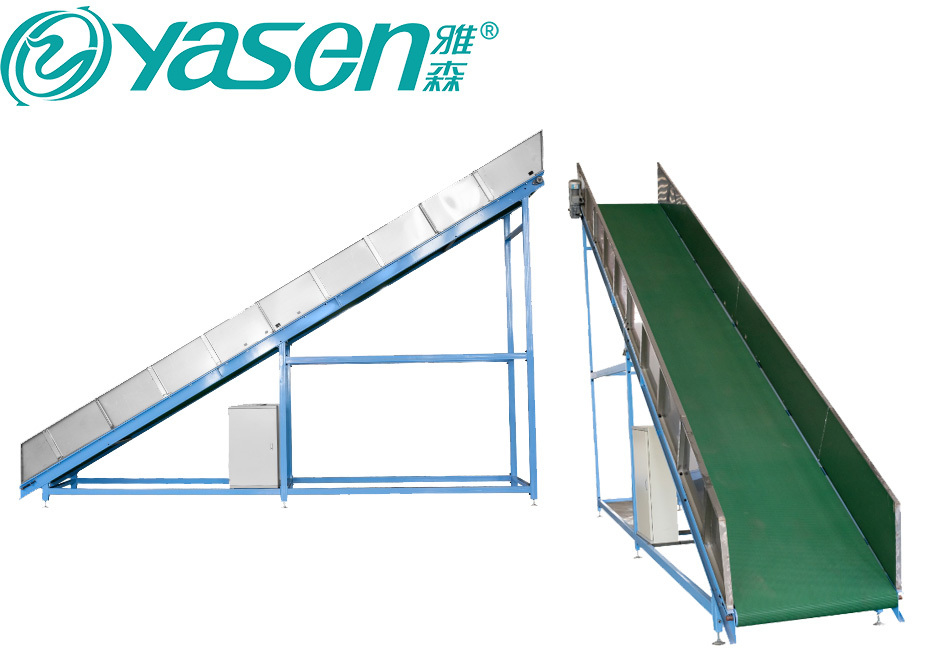

Tunnel Washer System Loading Conveyor Line

Product Features

Elevated Loading Design

The loading conveyor line is engineered to lift soiled linen to the height of the loading distribution line, enabling seamless integration with automated sorting and washing processes.
Pre-Storage Capacity

When all washer-extractors are fully loaded, the conveyor can pre-store an additional batch of linen, reducing idle time and ensuring continuous operation.
Robust Structural Design

Built with heavy-duty mechanical components for enhanced stability, durability, and high-performance operation in demanding industrial environments.

Technical Parameters

Parameter	Unit	CL-9000
Rated Load Capacity	kg	≥150
Conveyor Belt Width	mm	1000
Power Supply	V/Ph/Hz	380/3/50
Conveyor Motor Power	kW	1.5
Net Weight	kg	620
Overall Dimensions (W×D×H)	mm	6610×1260×4590

Industry Application Context

This loading conveyor line is a critical component of Yasen's intelligent washing systems, designed to optimize workflow in high-volume facilities such as hotel laundries, hospitals, and commercial washing plants. Its pre-storage capability and heavy-duty construction support uninterrupted operation, reduce manual handling, and enhance overall efficiency when paired with automated washers, dryers, and sorting systems.
