Fully Automatic Steam Ironing Press Machine High-speed Double-sided Ironer
Product Overview
Yasen's Fully Automatic Steam Ironing Press Machine is a high-speed double-sided ironer designed for commercial laundries, hotels, and garment factories. This professional laundry equipment automates fabric feeding, pressure adjustment, and steam distribution to maximize efficiency.
- Double-sided heating plates apply heat and steam uniformly to both fabric surfaces simultaneously
- Reduces ironing time by up to 50% compared to single-sided machines
- Handles various fabrics including cotton, linen, and polyester with wrinkle-free results
- Constructed with durable stainless steel and intelligent temperature control system
- Ideal for high-volume operations with safe operation under continuous use
Model Specifications
| Attributes | Y-1600I | Y-2500I | Y-2800I | Y-3000II | Y-3300III |
|---|
| Max Feeding Width(mm) | 1600 | 2500 | 2800 | 3000 | 3300 |
| Rolls Quantity | 1 | 1 | 1 | 2 | 3 |
| Roll Diameter(mm) | 800 | 800 | 800 | 800 | 800 |
| Ironing Speed(m/min) | 0-9 | 0-9 | 0-9 | 0-18 | 0-25 |
| Electric Heating Power(kw) | 18 | 27 | 36 | 64 | 96 |
| Steam Presure(Mpa) | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 |
| Steam Consumption(kg/h) | 80 | 120 | 250 | 250 | 320 |
| Steam lnlet(lnch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
| Drain Outlet(lnch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
| Rated-Voltage(V) | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V |
| Motor Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
| Dimension(L.W.H) (mm) | 1600x1300x1270 | 3500x1300x1270 | 3840×1300×1270 | 4040x2410x1420 | 4340x3350x1420 |
| N.W.(kg) | 750 | 1100 | 1300 | 3050 | 4350 |
Frequently Asked Questions
What is the core working principle of this fully automatic steam ironing press?
The system employs dual-sided heating plates that operate simultaneously, combined with an intelligent temperature control mechanism. It delivers consistent pressure and saturated steam to both sides of the fabric to quickly relax fibers and remove wrinkles. An automated conveyor allows continuous operation.
What are the technical advantages of dual-sided heating compared to traditional single-sided ironing?
Dual-sided heating ensures uniform thermal distribution throughout the fabric, reducing common issues such as heat loss and incomplete pressing typical in single-sided systems. This improves thermal efficiency and significantly decreases processing time per item--particularly beneficial for thick materials and wrinkle-prone fabrics.
What types of fabrics is the machine compatible with? Does it adjust temperature settings automatically?
The machine supports a wide range of fabrics including cotton, linen, polyester, and blends. It is equipped with an intelligent temperature control system that automatically adjusts ironing temperature based on fabric type--e.g., lower heat for synthetics, higher heat for natural fibers--to prevent damage or deformation.
How is "high efficiency and time savings" actually achieved?
Compared to traditional single-sided ironing, the dual-sided heating system reduces ironing time by approximately 50%. When integrated with automatic feeding and discharge systems, it enables continuous batch processing, making it ideal for high-volume applications such as hotel linens and workwear.
Are there energy-saving or eco-friendly features in the steam system?
Yes. The machine uses an on-demand steam supply mechanism paired with sealed heating plates to minimize waste. Selected models offer an optional steam recovery unit to further reduce energy and water consumption.
Can the machine be easily integrated into existing laundry workflows?
Yes. It offers standardized inlet/outlet widths and conveyor height options, and can be synchronized with folding machines and conveyor lines. It is available in both built-in and standalone configurations to suit most laundry plant layouts.

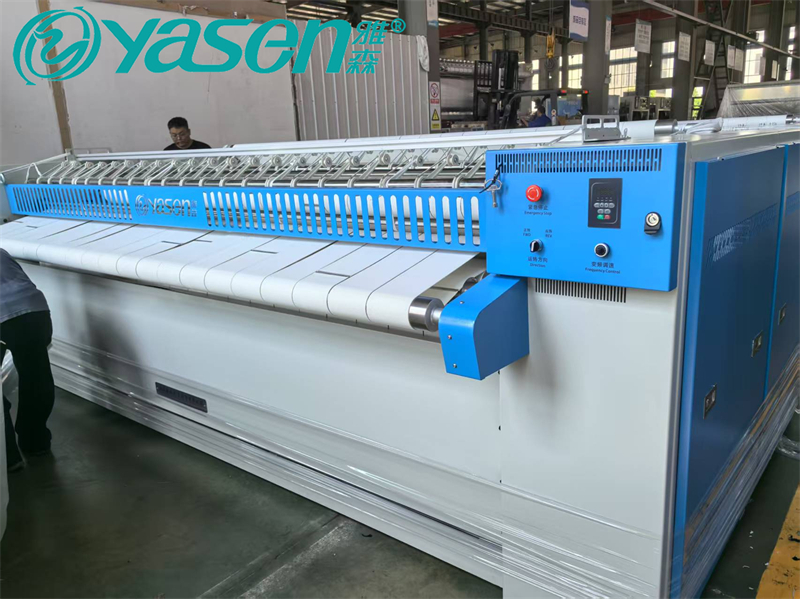

Product Images
Product Features
Use: Y series roller automatic flat-work ironing machine is new product developed with Sino-foreign technology. Suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. Used for ironing and finishing flat fabrics like bedsheets, bedcovers, and tablecloths after washing.
- Efficiently irons fabrics with duplex and no trace, ensuring high-quality results
- Constructed with high-precision 304 stainless steel drum for long service life
- Frequency conversion drives allow speed adjustment for different fabrics
- Programmable computer control with multi-language panel and large LCD display
- Smooth operation with frequency-conversion motor, reducer, and chains transmission
- Equipped with buffer and auto-adjustment conveying system for precise fabric handling
- Safety features include emergency stop function for operator protection
After-Sales Service
- 1-year warranty on the whole machine
- Lifelong technical support
- Guaranteed spare parts supply
- Overseas service engineers available
- Free technical training at factory
- Free technical guidance through network
- On-site service available under contract
- Main spare parts (except consumables) under one-year warranty with free shipping
