Place of Origin:
Shanghai, China
Brand Name:
YASEN
Certification:
CE/OHSAS18001/ISO14001

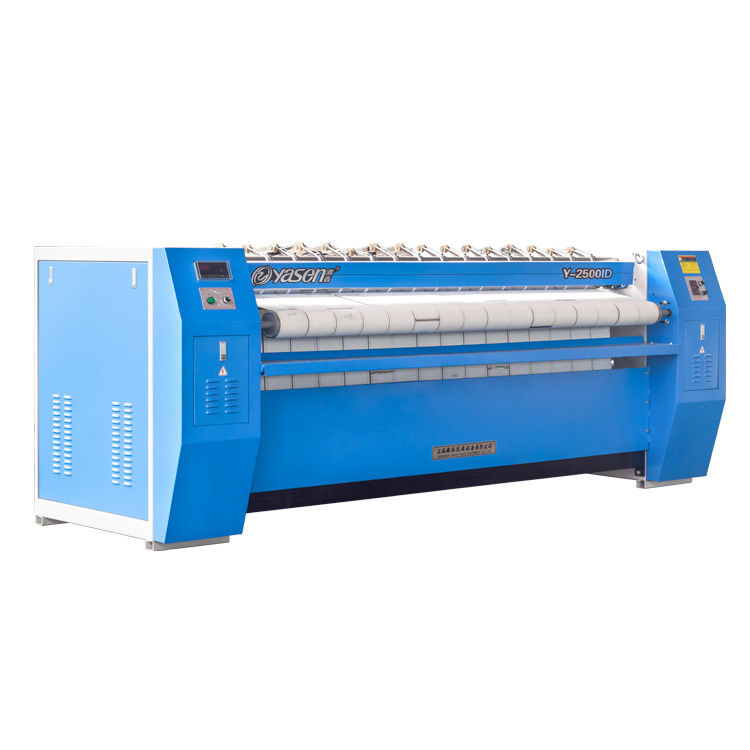

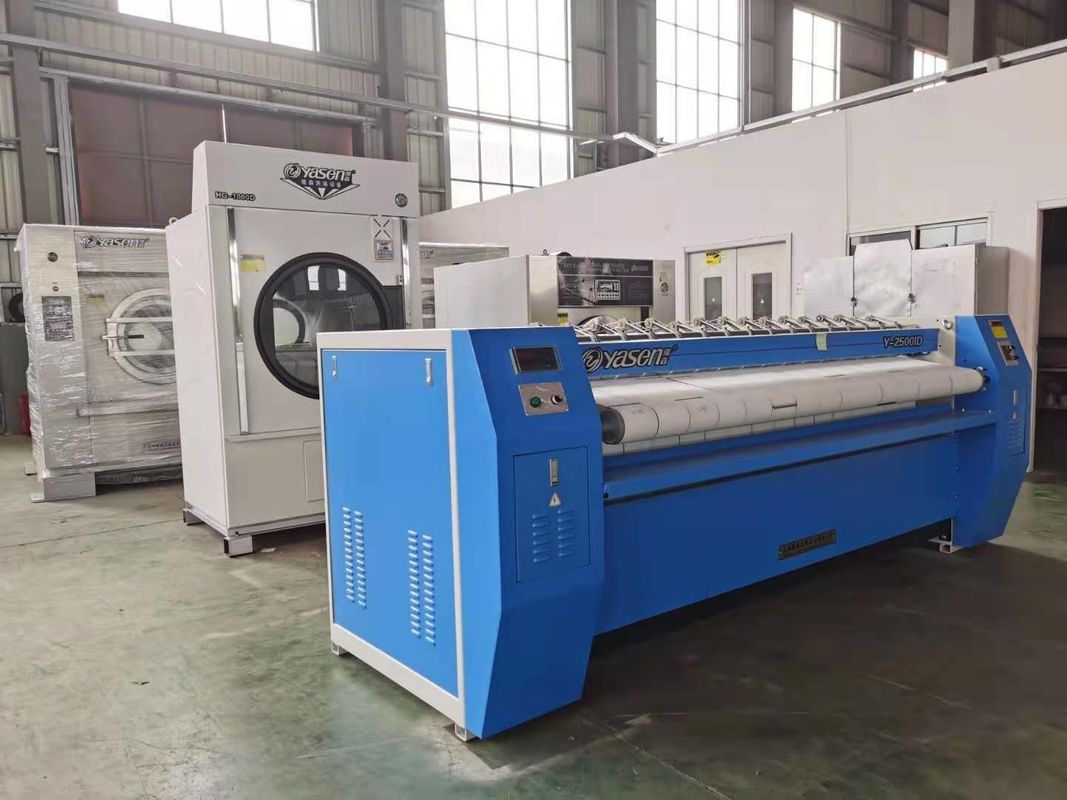

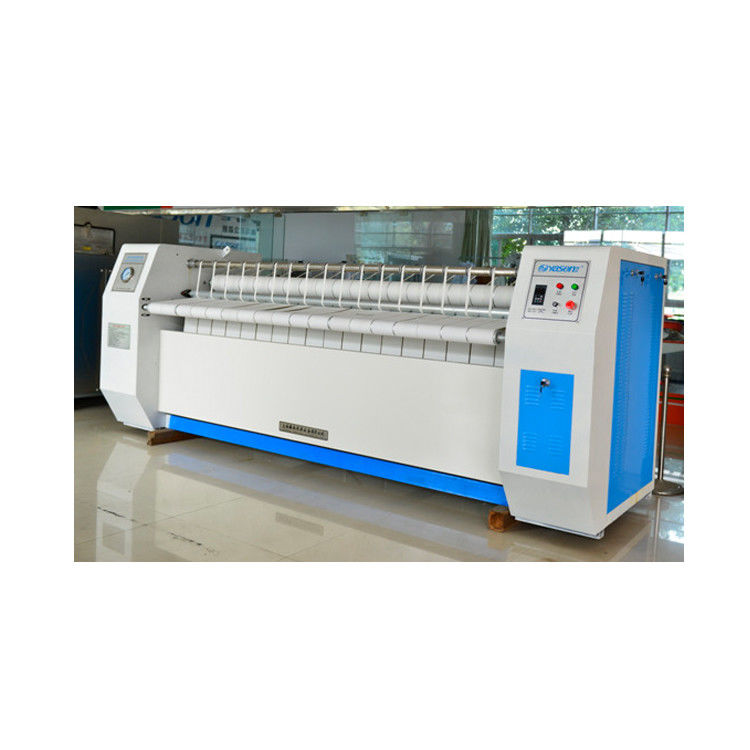

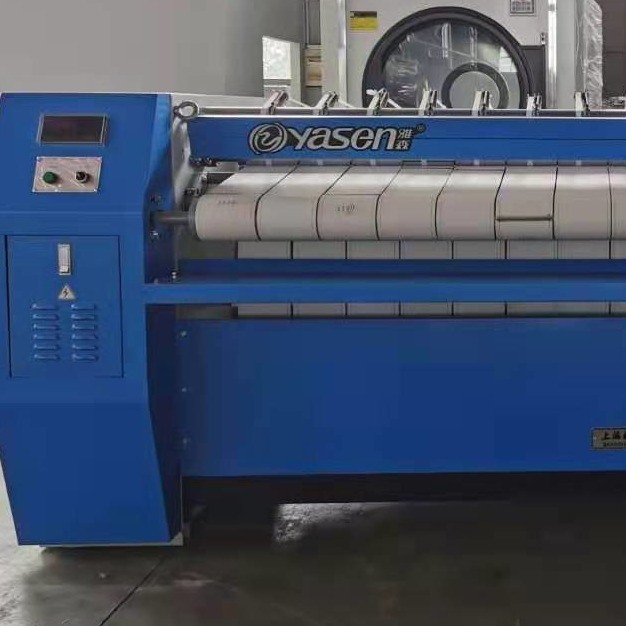

Fully Automatic Flatwork Ironer Machine for Commercial Laundry
The Fully Flatwork Ironer Machine for Commercial Laundry is a state-of-the-art and highly efficient piece of equipment. Specially designed for commercial laundry operations, it is engineered to handle large volumes of flatwork items with remarkable precision and speed. This machine features advanced heating and pressing mechanisms that ensure thorough and consistent ironing results, leaving fabrics smooth and crisp. It is equipped with intelligent control systems that allow for easy adjustment of various parameters to accommodate different fabric types and ironing requirements. The durability and reliability of the Fully Flatwork Ironer Machine make it an essential asset for any commercial laundry facility, enabling them to meet the high demands of their clients and provide top-quality service. With its superior performance and functionality, this ironer machine is a game-changer in the commercial laundry industry, enhancing productivity and ensuring outstanding laundry outcomes.
Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.

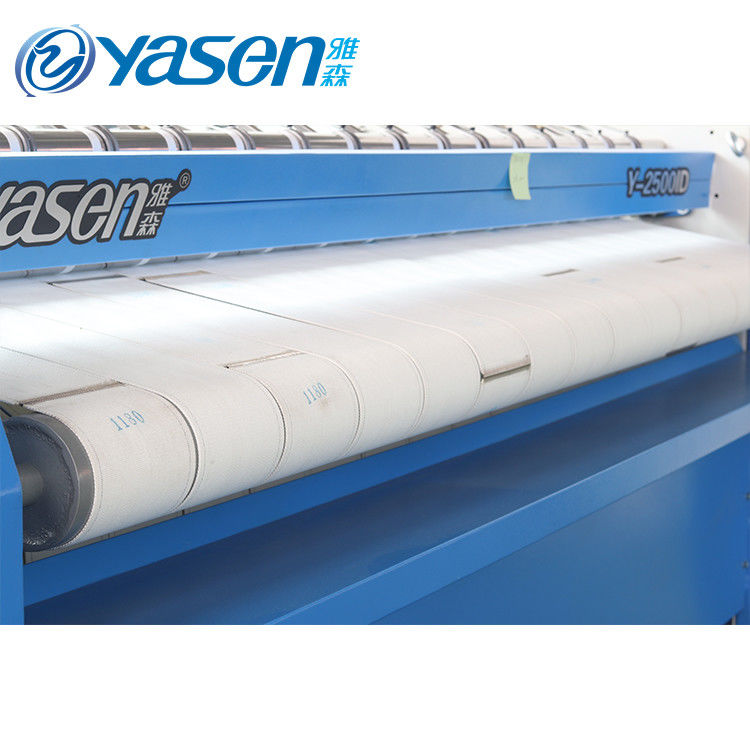

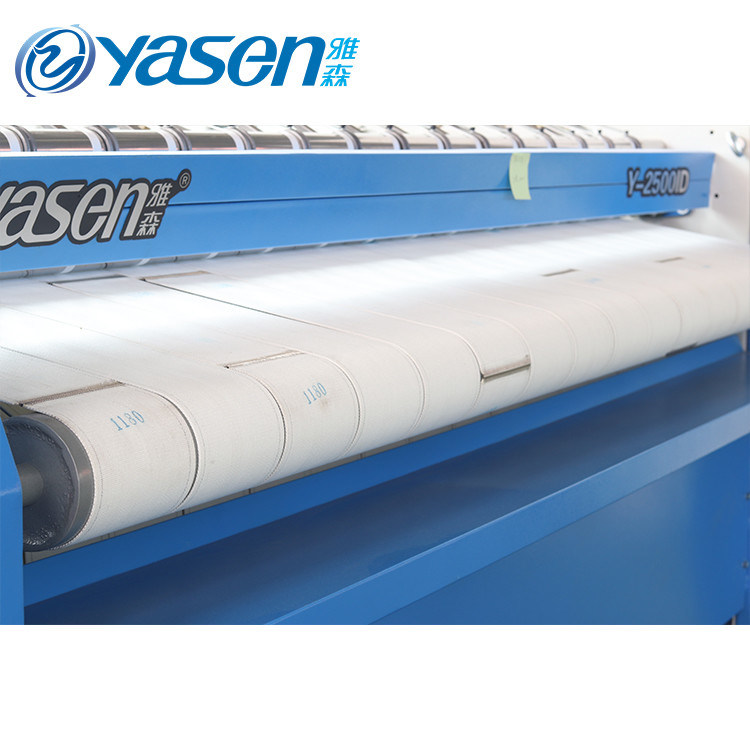

This equipment is made of high-precision 304 stainless steel drum,long service life.
Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Attributes
|
Y-1600I
|
Y-2500I
|
Y-2800I
|
Y-3000II
|

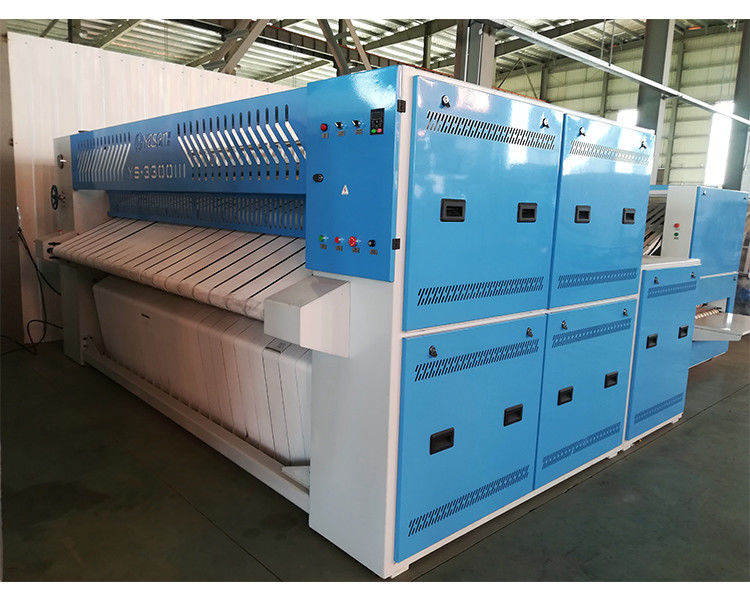

Y-3300III
|
Max Feeding Width(mm)
|
1600
|
2500
|
2800
|
3000
|
3300
|
Rolls Quantity
|
1
|
1
|
1
|
2
|
3
|
Roll Diameter(mm)
|
800
|
800
|
800
|
800
|
800
|
Ironing Speed(m/min)
|
0-9
|
0-9
|
0-9
|
0-18
|
0-25
|
Electric Heating Power(kw)
|
18
|
27
|
36
|
64
|
96
|
Steam Presure(Mpa)
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
Steam Consumption(kg/h)
|
80
|
120
|
250
|
250
|
320
|
Steam lnlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Drain Outlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Rated-Voltage(V)
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
Motor Power(kw)
|
0.75
|
0.75
|
1.5
|
1.5
|
2.2
|
Dimension(L.W.H) (mm)
|
1600x1300x1270
|
3500x1300x1270
|
3840×1300×1270
|
4040x2410x1420
|
4340x3350x1420
|
N.W.(kg)
|
750
|
1100
|
1300
|
3050
|
4350
|
