Place of Origin:
Shanghai, China
Brand Name:
YASEN

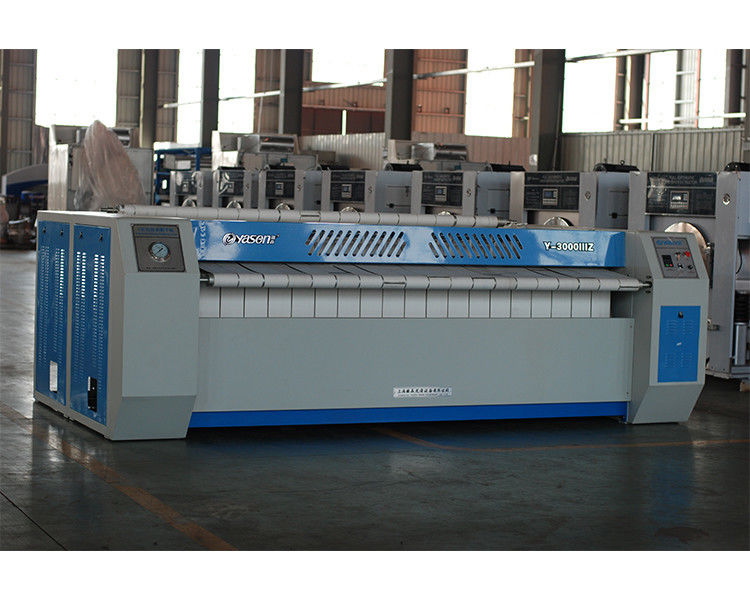

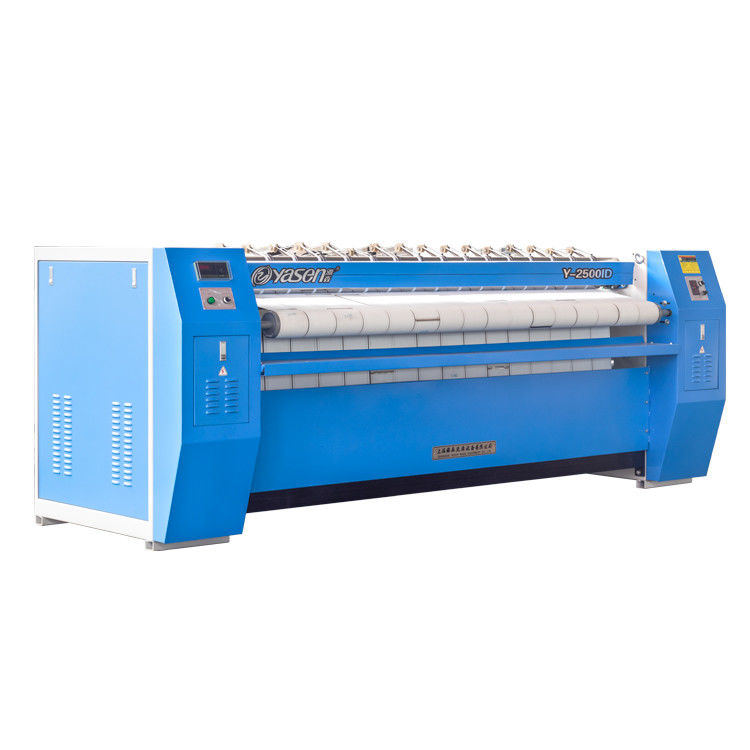

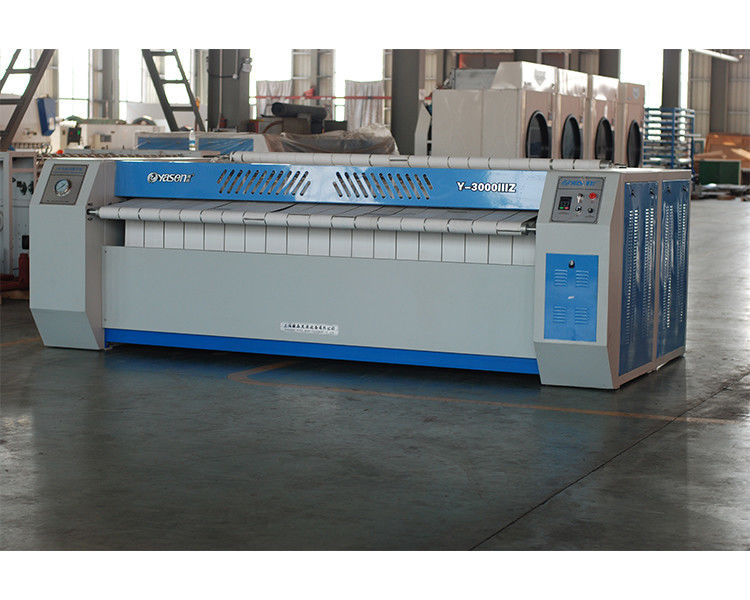

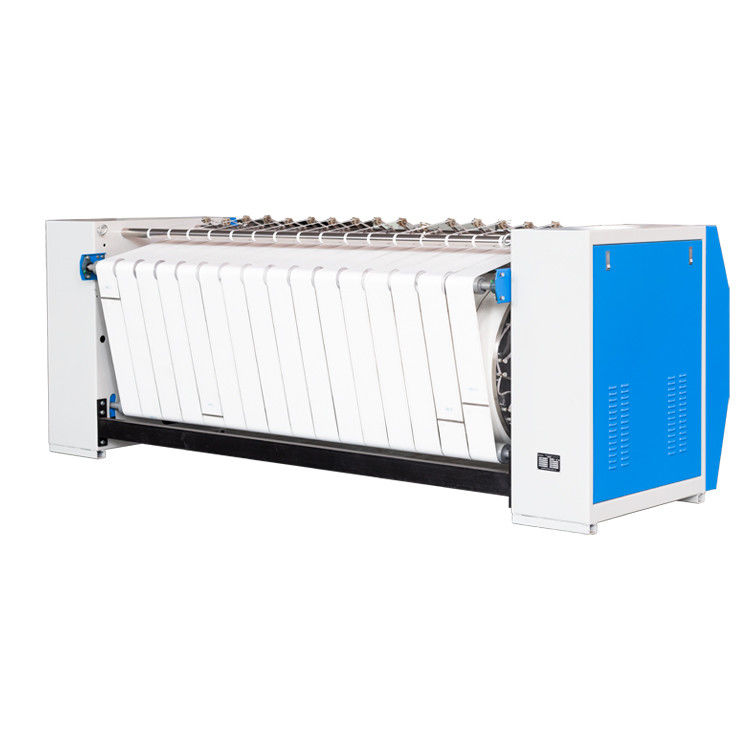

The industrial flatwork ironer is a specialized piece of equipment used in commercial laundries to efficiently iron large quantities of flatwork such as sheets, towels, and tablecloths. This equipment is designed to handle heavy-duty loads and provide a professional finish to the laundry.

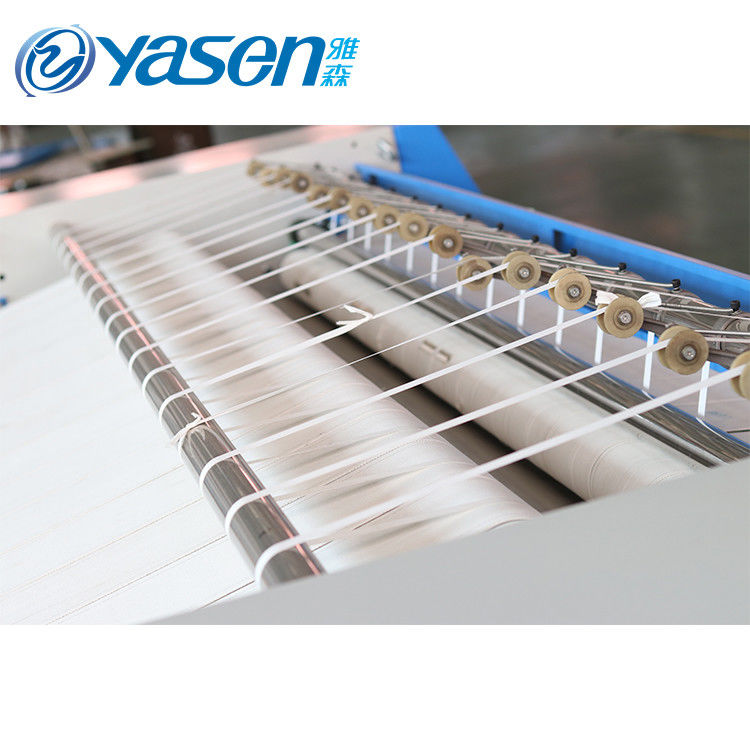

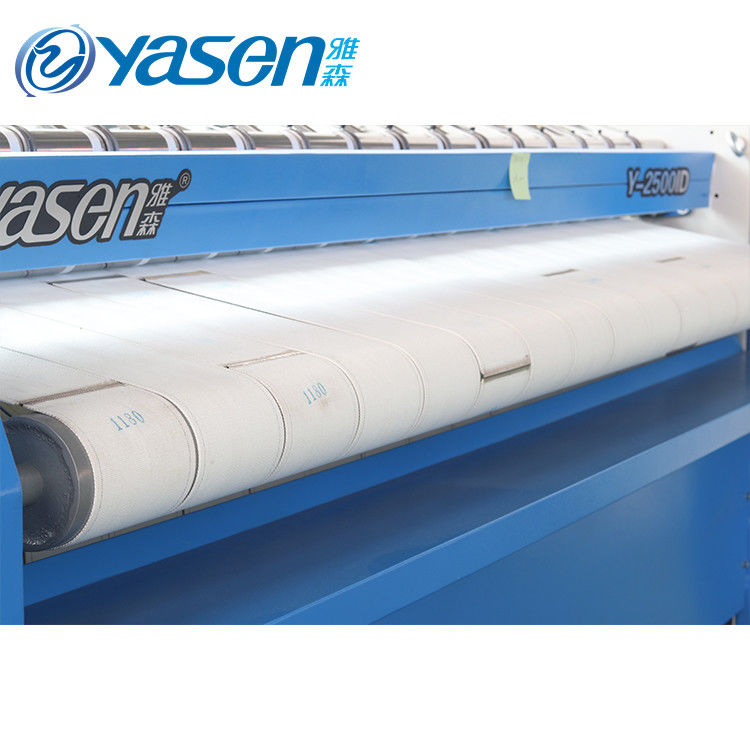

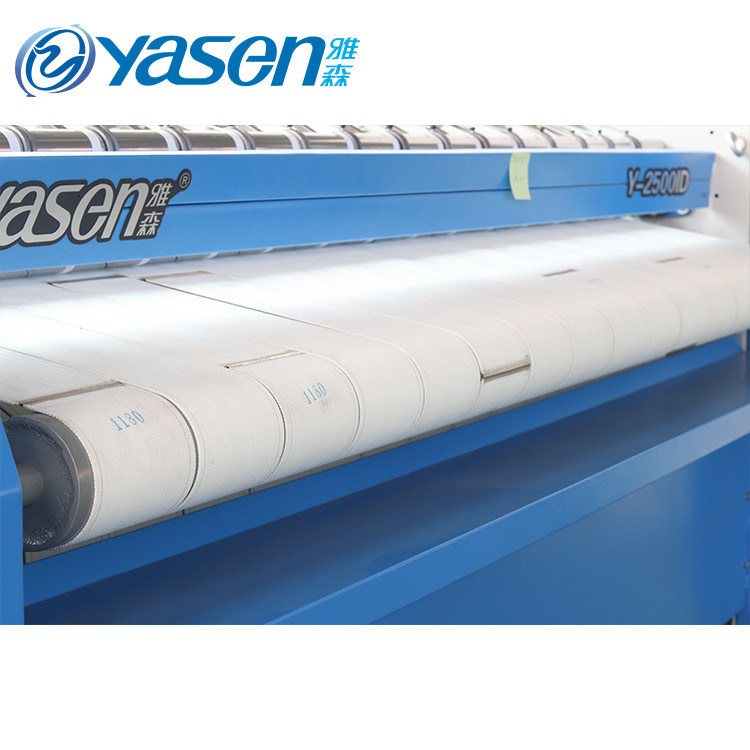

The ironer consists of a series of heated rollers that rotate to iron the laundry. The rollers are coated with a non-stick material to prevent the laundry from sticking to them. The temperature and speed of the rollers can be adjusted to suit different types of laundry.
The industrial flatwork ironer is commonly used in hotels, hospitals, and commercial laundries where large volumes of laundry need to be processed efficiently. It is also used in the hospitality industry for ironing tablecloths, napkins, and other linens.
| Attributes | Y-1600I | Y-2500I | Y-2800I | Y-3000II | Y-3300III |
|---|---|---|---|---|---|
| Max Feeding Width (mm) | 1600 | 2500 | 2800 | 3000 | 3300 |
| Rolls Quantity | 1 | 1 | 1 | 2 | 3 |
| Roll Diameter (mm) | 800 | 800 | 800 | 800 | 800 |
| Ironing Speed (m/min) | 0-9 | 0-9 | 0-9 | 0-18 | 0-25 |
| Electric Heating Power (kw) | 18 | 27 | 36 | 64 | 96 |
| Steam Pressure (Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Steam Consumption (kg/h) | 80 | 120 | 250 | 250 | 320 |
| Steam Inlet (Inch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
| Drain Outlet (Inch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
| Rated Voltage (V) | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V |
| Motor Power (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
| Dimension L×W×H (mm) | 1600×1300×1270 | 3500×1300×1270 | 3840×1300×1270 | 4040×2410×1420 | 4340×3350×1420 |
| Net Weight (kg) | 750 | 1100 | 1300 | 3050 | 4350 |
