800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing

Diameter 800mm flat roll ironer

Prison flat roll ironer

Laundry Shop flat roll ironer

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

ISO9001:2008

Request A Quote

800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing

Product Details

Product Name:

Single Roller Iron Steam Ironer Machine

Warranty:

1 Year

Heating:

Steam

Roll Diameter(mm):

800

Function:

Prison Laundry Flatwork Ironing

Capacity:

1.6m,2.5m,2.8m,3m,3.3m

Power Supply:

380/3/50 (V/p/Hz)

Brand:

YASEN

Highlight:

Diameter 800mm flat roll ironer

Prison flat roll ironer

Laundry Shop flat roll ironer

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$5,600.00/sets >=1 sets

Packaging Details

WOODEN PACKAGE

Supply Ability

100 Set/Sets per Month

Fully Automatic Flatwork Ironer Machine for Commercial Laundry

Get Best Price

800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing

Get Best Price

3050kg Stainless Steel Ironing Bedsheet And Clothes Folding Machine With Iron Function

Get Best Price

5 Rolls Clean Sheet Automatic Laundry Flatwork Ironer With Steam Heating Function

Get Best Price

Contact Now

Product Description

800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing

The 800mm roll diameter single roller iron steam is a specialized piece of equipment designed for the rigorous demands of prison laundry shops. With a focus on efficiency and durability, this flatwork ironing system ensures that all laundry items are pressed to a pristine finish, maintaining the highest standards of hygiene and cleanliness.

The key feature of this machine is its large 800mm roll diameter, which provides a generous pressing surface, enabling it to handle larger laundry items with ease. The single roller design, combined with advanced steam technology, ensures that heat is evenly distributed across the entire pressing surface, resulting in a smooth and wrinkle-free finish.

Product Specifications

Attributes	Y-1600I	Y-2500I	Y-2800I	Y-3000II	Y-3300III
Max Feeding Width (mm)	1600	2500	2800	3000	3300
Rolls Quantity	1	1	1	2	3
Roll Diameter (mm)	800	800	800	800	800
Ironing Speed (m/min)	0-9	0-9	0-9	0-18	0-25
Electric Heating Power (kw)	18	27	36	64	96
Steam Pressure (Mpa)	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Steam Consumption (kg/h)	80	120	250	250	320
Steam Inlet (Inch)	G1.5"	G1.5"	G1.5"	G1.5"	G1.5"
Drain Outlet (Inch)	G1.5"	G1.5"	G1.5"	G1.5"	G1.5"
Rated Voltage (V)	3P/220V/380V	3P/220V/380V	3P/220V/380V	3P/220V/380V	3P/220V/380V
Motor Power (kw)	0.75	0.75	1.5	1.5	2.2
Dimension (L.W.H) (mm)	1600x1300x1270	3500x1300x1270	3840×1300×1270	4040x2410x1420	4340x3350x1420
N.W. (kg)	750	1100	1300	3050	4350

Product Overview

Y series roller automatic flat-work ironing machine is a new product developed by our company with Sino-foreign technology. It is suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. It is used for ironing and finishing flat fabrics such as bedsheets, bedcovers, and tablecloths after washing and extracting.

Key Features

Efficiently irons fabrics with duplex and no trace, ensuring high-quality ironing effect
Constructed with high-precision 304 stainless steel drum for long service life
Frequency conversion drives allow users to adjust ironing speed based on different fabrics, improving efficiency

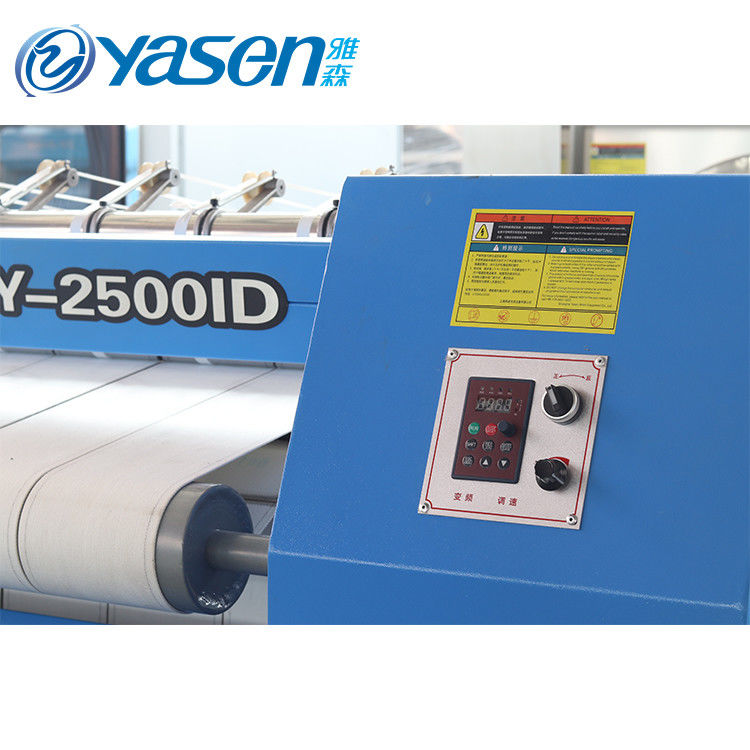

Programmable computer control with multi-language control panel and large screen LCD for easy operation
Uses frequency-conversion motor, reducer, and chains transmission for smooth operation

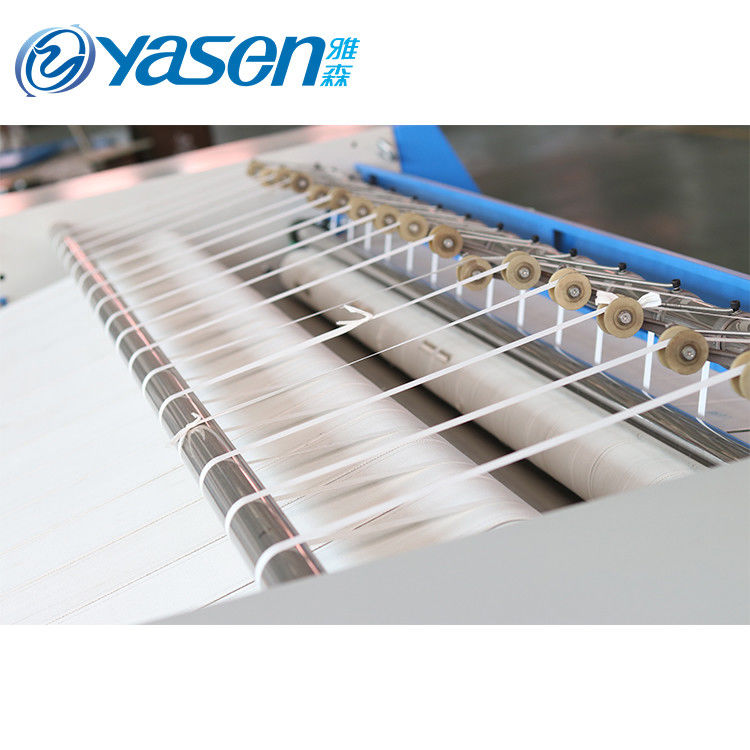

Equipped with buffer and auto-adjustment conveying system - no guide strips needed, precise conveyance
Safe electrical-pneumatic design with emergency stop function to ensure operator safety

After-Sales Service

Complete machine guaranteed for 1 year
Lifelong technical support
Guaranteed spare parts supply
Engineers available for overseas machinery service

Installation and Testing

Free technical training at factory
Free technical guidance through network
On-site service available under contract

Warranty

Main spare parts (excluding consumable accessories) are covered by ONE YEAR warranty for manufacturing defects with free shipping.
