Place of Origin:
Shanghai, China
Brand Name:
YASEN

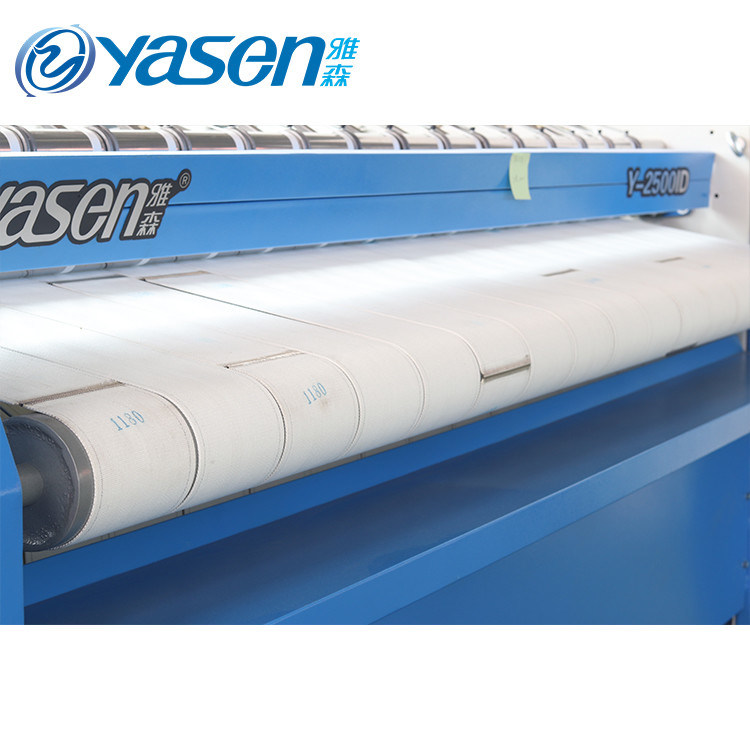

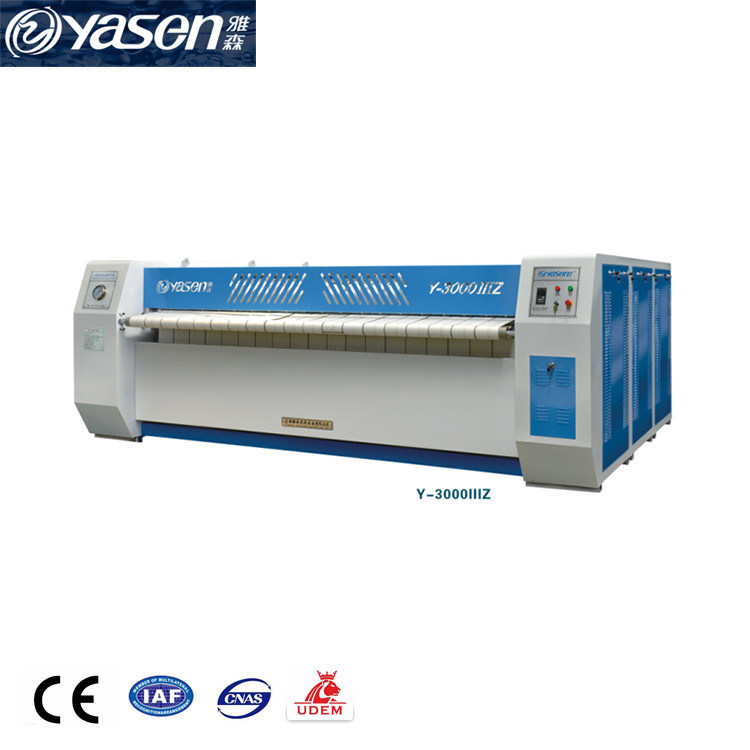

0-10m/min Ironing Speed Steam Heated Composing Multi-Roller Bed Sheets Flatwork Ironer
This is a high-quality flatwork ironer specifically designed for bed sheets. It offers an adjustable ironing speed ranging from 0 to 10 meters per minute, allowing for flexibility based on specific needs. The ironer is steam heated, ensuring efficient and effective ironing. It features a composing multi-roller design, which helps to smooth out wrinkles and achieve a professional finish on bed sheets. This ironer is engineered to provide reliable and consistent performance, making it ideal for commercial laundry or linen processing operations that require high-quality ironing results for bed sheets.
Applications:
Primarily used in commercial laundry facilities, hotels, hospitals, and other establishments where large volumes of bed sheets need to be neatly ironed. It is essential for maintaining a professional and presentable appearance of linens.
Advantages:
The adjustable ironing speed allows for customization based on the specific workload and fabric type. Steam heating ensures quick and effective removal of wrinkles and a smooth finish. The multi-roller design enhances the quality and uniformity of the ironing process. Additionally, its durability and reliability make it a valuable asset for continuous and heavy-duty usage, ensuring long-term performance and cost-effectiveness.
Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
This equipment is made of high-precision 304 stainless steel drum,long service life.

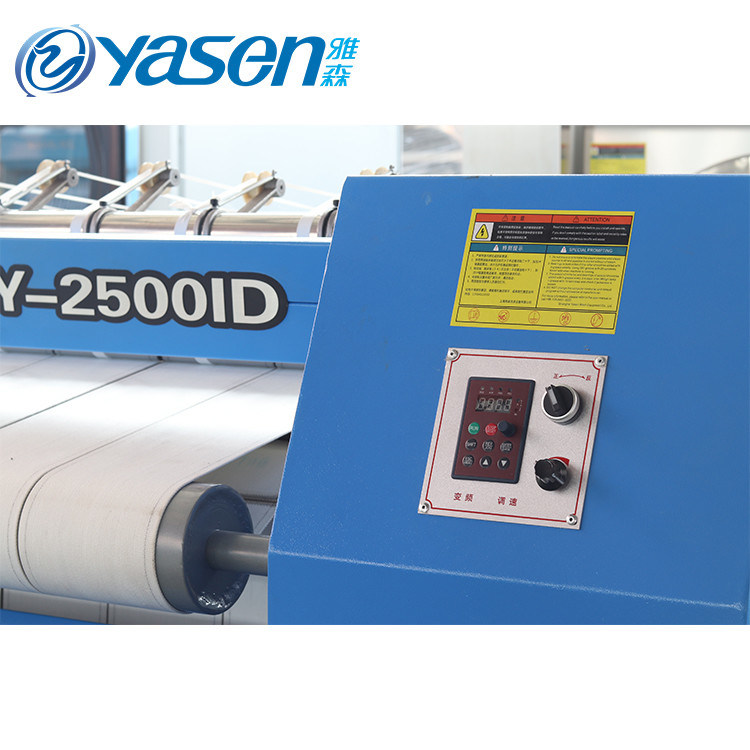

Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency. Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.
Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
Attributes
|
Y-1600I
|
Y-2500I
|
Y-2800I
|
Y-3000II
|
Y-3300III
|
Max Feeding Width(mm)
|
1600
|
2500
|
2800
|
3000
|
3300
|
Rolls Quantity
|
1
|
1
|
1
|
2
|
3
|
Roll Diameter(mm)
|
800
|
800
|
800
|
800
|
800
|
Ironing Speed(m/min)
|
0-9
|
0-9
|
0-9
|
0-18
|
0-25
|
Electric Heating Power(kw)
|
18
|
27
|
36
|
64
|
96
|
Steam Presure(Mpa)
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
Steam Consumption(kg/h)
|
80
|
120
|
250
|
250
|
320
|
Steam lnlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Drain Outlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Rated-Voltage(V)
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
Motor Power(kw)
|
0.75
|
0.75
|
1.5
|
1.5
|
2.2
|
Dimension(L.W.H) (mm)
|
1600x1300x1270
|
3500x1300x1270
|
3840×1300×1270
|
4040x2410x1420
|
4340x3350x1420
|
N.W.(kg)
|
750
|
1100
|
1300
|
3050
|
4350
|
