Place of Origin:
Shanghai, China
Brand Name:
YASEN

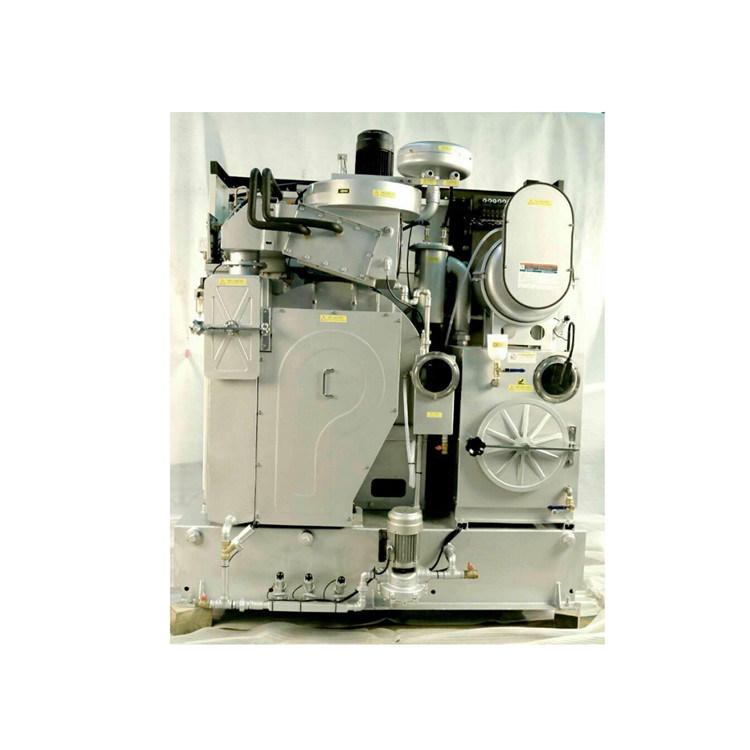

The 8kg Rated Capacity Full-Auto Full-Closed Dry Cleaning Machine Equipment is a state-of-the-art cleaning solution designed for professional use. It boasts a rated capacity of 8kg, making it suitable for a wide range of applications, including commercial laundries, hospitals, hotels, and other textile-intensive industries.
The 8kg Rated Capacity Full-Auto Full-Closed Dry Cleaning Machine Equipment works on the principle of solvent cleaning. Here's a step-by-step overview of its working process:
| Category | LS 816 | LS 820 | LS 825 |
|---|---|---|---|
| Washing Capacity (kg) | 16 | 20 | 25 |
| Capacity of volume (L) | 280 | 340 | 425 |
| Capacity of diameter (mm) | Φ900 | Φ900 | Φ900 |
| Power Supply (V/P/Hz) | 380/3/50 | 380/3/50 | 380/3/50 |
| Drive Motor Power (kw) | 2.2 | 3 | 4 |
| Hydraulic Pump Power (kw) | 0.75 | 0.55 | 0.55 |
| Power electric heating (kw) | 23.7 | 24.5 | 24.5 |
| Power steam heating (kw) | 8.7 | 9.5 | 10.5 |
| Steam pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| N.W. (kg) | 1850 | 2020 | 2280 |
| Dimension (L.W.H) (mm) | 2015*1570*2250 | 2015*1662*2250 | 2015*1795*2250 |
| Category | LS910 | LS915 | LS920 |
|---|---|---|---|
| Washing Capacity (kg) | 10 | 15 | 20 |
| Capacity of volume (L) | 186 | 250 | 341 |
| Capacity of diameter (mm) | 686 | 774 | 903 |
| Depth (mm) | 504 | 534 | 534 |
| Cleanout speed (rpm) | 40 | 40 | 40 |
| Drying rate (rpm) | 400 | 400 | 400 |
| Power steam heating (kw) | 7.35 | 8.25 | 9.755 |
| Dimension (L.W.H) (mm) | 2010*1400*2100 | 2110*1560*2100 | 2180*1560*2180 |
| Category | LS-608C | LS-610C | LS-612C |
|---|---|---|---|
| Washing Capacity (kg) | 8 | 10 | 12 |
| Capacity of drum (L) | 140 | 170 | 198 |
| Washing Speed (r/min) | 38 | 38 | 38 |
| Extracting Speed (r/min) | 400 | 400 | 400 |
| Hydraulic Pump Power (kw) | 0.55 | 0.55 | 0.55 |
| Drive Motor Power (kw) | 1.5 | 2.2 | 2.2 |
| Filter Motor (kw) | 0.55 | 0.55 | 0.55 |
| Power Supply (V) | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V |
| Frequency (Hz) | 50 | 50 | 50 |
| Dimension (L.W.H) (mm) | 1680*1250*1970 | 1680*1250*1970 | 1820*1330*2200 |
| N.W. (kg) | 980 | 1150 | 1280 |
The whole machine has been guaranteed for 1 year. Providing lifelong technical support. Guarantee of spare parts supply. Engineers available to service machinery overseas.
Main spare parts (except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping.
| Products | Middle East | Africa | European and American Area | Asia |
|---|---|---|---|---|
| Sea Transport (Door to Door) | 15-22 Days | 25-40 Days | 15-35 Days | 6-14 Days |
| Service | Middle East | Africa | European and American Area | Asia |
|---|---|---|---|---|
| DHL Express | 4 Days | 5-6 Days | 3-4 Days | 2 Days |
| FedEx Express | 5 Days | 6 Days | 4-5 Days | 3-4 Days |
| UPS Express | 6 Days | 6 Days | 6-7 Days | 5-6 Days |
| TNT Express | 6-7 Days | 6-7 Days | 5-6 Days | 4-6 Days |
| Air Transport | 4-5 Days | 5-8 Days | 4-6 Days | 1-3 Days |
