100 kg Steam Electric Industrial Tumble Dryer Industrial Clothes Dryer

100 kg Steam Electric Industrial Tumble Dryer Industrial Clothes Dryer

100 kg industrial tumble dryer

steam electric clothes dryer

industrial laundry dryer with warranty

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Model Number:

HG-2000Z

Contact Us
Request A Quote
Product Details
Product Name:
100 Kg Steam Electric Industrial Tumble Dryer
Warranty:
1 Year
Heating Type:
Steam Or Electric
Type:
Tumble Dryer
Rated Capacity:
15-120kg
Motor Power:
1.1kW
Application:
Hotel Commercial
Housing Material:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$2500.00 - $7500.00/sets
Packaging Details
Wooden package for washing machine
Supply Ability
100 Set/Sets per Month
Product Description

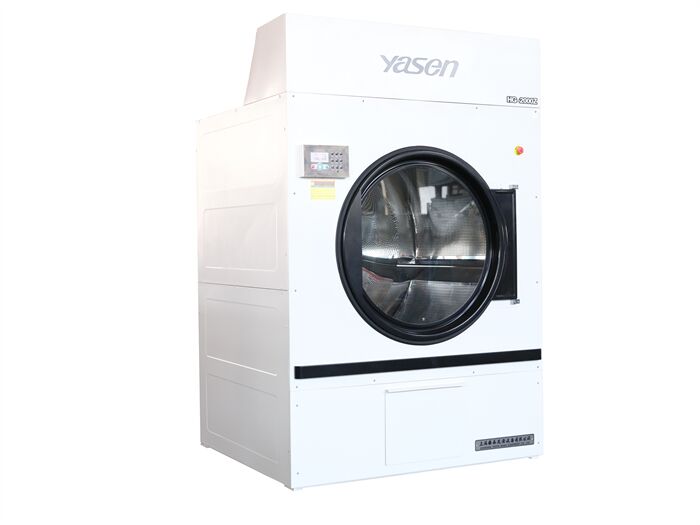

100 kg Steam Electric Industrial Tumble Dryer Industrial Clothes Dryer

The HG-2000 is a professional-grade 100 kg industrial tumble dryer engineered for high-volume operations. It offers the critical choice between steam and electric heating systems, allowing you to select the most energy-efficient and cost-effective power source for your facility. Built with a robust, corrosion-resistant stainless steel drum and a high-capacity dual-fan airflow system, this dryer delivers fast, uniform drying for demanding commercial and industrial laundry applications.

Product Parameters
Attributes HG-300 HG-400 HG-500 HG-700 HG-1000 HG-1400 HG-2000
Rated Capacity(kg) 15 20 25 35 50 70 100
Drum Dimension(mm) Φ800x600 Φ900x650 Φ970x670 Φ970x1000 Φ1180x870 Φ1280x950 Φ1450×1050
Motor Power(kw) 0.55 0.55 0.75 0.75 1.1 1.5 2.2
Drying Speed(r/min) 48 45 40 38 35 30 28
Fan Power(kw) 0.55 0.55 0.75 0.75 1.1 1.5 1.5x2
Heating Power(kw) 13 18 24 32 39 50 83
Rated Voltage(V) 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415 220/380/415
Steam Pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Consumes of Steam(kg/h) 42 42 70 98 120 180 250
Steam lnlet(lnch) G3/4" G3/4" G1" G1" G1.5" G2" G2"
Gas Consumption(m³/h)






Gas lnlet(lnch)






Dimension(L.W.H) (mm) 850x1100x1600 880x1170x1650 1060x1250x2000 1100x1500x2060 1310x1550x2200 1405x1560x2300 1660x1950x2550
N.W.(kg) 420 430 450 480 560 850 1250
Who It's For

This 100 kg dryer is designed for facilities with continuous, large-scale drying needs, such as:

  • Centralized Laundry Plants serving hotels, hospitals, or rental services.
  • On-Premise Laundries (OPLs) in large hospitals, prisons, or hospitality chains.
  • Textile & Uniform Manufacturing facilities.
  • High-Throughput Commercial Laundromats.
How to Choose: Steam vs. Electric

Your choice between steam and electric heating is the most important decision. Use this guide:

  • Choose the STEAM Version if: Your facility has an existing boiler plant or access to a reliable, cost-effective steam supply. This option typically offers the lowest long-term operating cost and fastest heat-up times.
  • Choose the ELECTRIC Version if: Steam is not available or impractical. Electric dryers are simpler to install, requiring only a power connection, and are ideal where electricity is readily available and competitively priced.
Key Procurement Considerations
  1. Assess Volume: Ensure this 100 kg capacity matches your batch sizes and daily throughput to maximize efficiency.
  2. Plan for Installation:
    • Steam Model: Requires certified steam pipe connection, condensate return, and possibly a pressure regulator.
    • Electric Model: Requires a dedicated high-amperage, 3-phase power circuit installed by a qualified electrician.
    • Both: Require adequate floor space (consider door swing), structural support, and a robust exhaust venting system.
  3. Focus on Maintenance: Regular cleaning of the lint collection system and periodic inspection of the drum seal are essential for sustained performance and safety.

Frequently Asked Questions (FAQs)
Q1: Is the HG-2000 a "dual-fuel" dryer that can use both steam and electricity?
A: No. The HG-2000 is manufactured as either a steam-heated model or an electric-heated model. You must select the version that corresponds to your plant's available utilities during the ordering process.
Q2: We have both steam and 3-phase power. Which heating type is more cost-effective to run?
A: Operating cost depends entirely on your local utility rates. Generally, if steam is generated on-site or available at a low industrial rate, the steam model is significantly more cost-effective per cycle. We recommend comparing your cost per kW/h of electricity to your cost per kilogram of steam to calculate the precise difference for your operation.
Q3: Why is a stainless steel drum important for an industrial clothes dryer?
A: Industrial laundry processes often use aggressive chemicals (bleach, alkalis). A stainless steel drum is highly corrosion-resistant, preventing rust stains on linens and ensuring the drum's integrity over many years of harsh service, which translates to lower maintenance and better fabric care.
Q4: What is the advantage of the dual-fan system?
A: The dual 1.5kW fans create powerful, balanced airflow. This results in faster moisture removal (reducing cycle times) and more even heat distribution throughout the large drum, preventing wet spots and improving overall drying quality for full 100 kg loads.
Q5: Our new facility is being planned. Should we install steam pipes for future flexibility, even if we start with an electric dryer?
A: This is a strategic infrastructure decision. If there is a high probability of accessing cost-effective steam in the future, pre-installing steam lines during construction can be a wise long-term investment. However, if steam is uncertain, starting with the simpler electric model and robust electrical service is the more practical and lower initial-cost approach.
