Place of Origin:
Shanghai, China
Brand Name:
YASEN
Certification:
CE/OHSAS18001/ISO14001

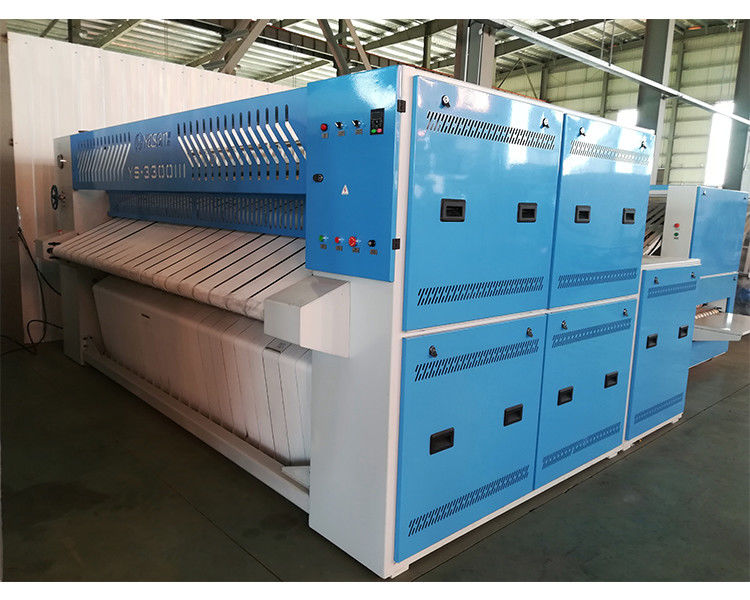

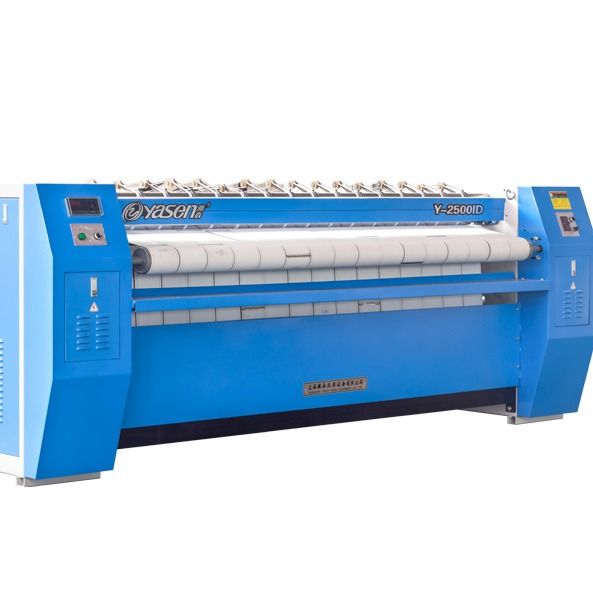

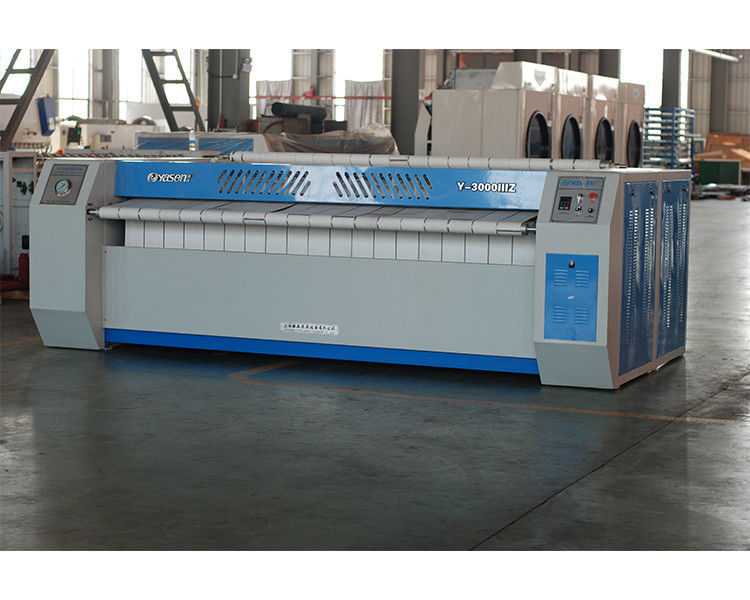

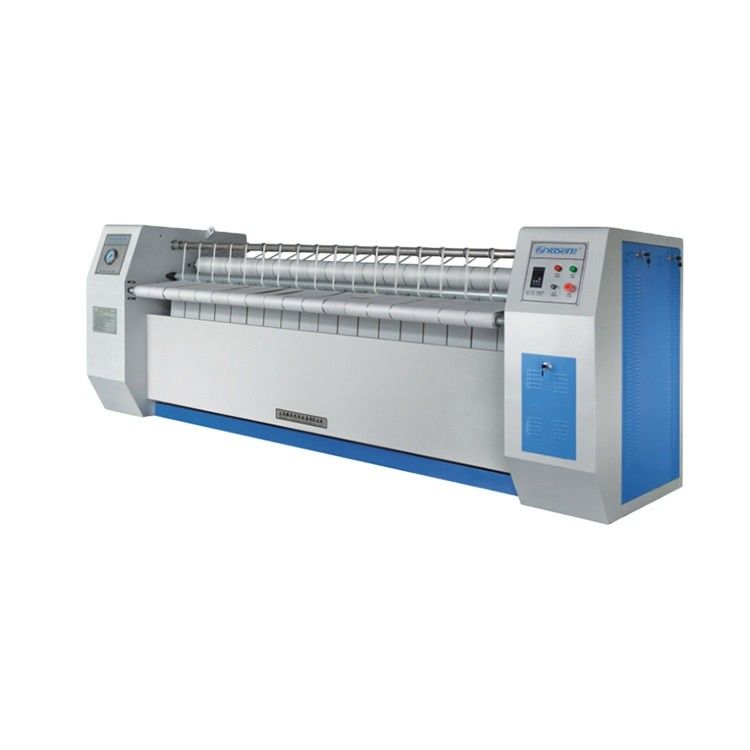

Stainless Steel Fully Automatic Flatwork Ironer Machine for Shirts and Bedsheets
The stainless steel fully automatic flatwork ironer machine is a specialized piece of equipment that is designed to efficiently iron large quantities of flatwork such as shirts and bedsheets. This equipment is commonly used in commercial laundries, hotels, and hospitals where high-quality laundry services are required.
The ironer is made of high-quality stainless steel, which ensures its durability and resistance to corrosion. It is equipped with a powerful motor that provides excellent performance and reliability.
Product Parameters
Attributes
|
Y-1600I
|
Y-2500I
|
Y-2800I
|
Y-3000II
|
Y-3300III
|
Max Feeding Width(mm)
|
1600
|
2500
|
2800
|
3000
|
3300
|
Rolls Quantity
|
1
|
1
|
1
|
2
|
3
|
Roll Diameter(mm)
|
800
|
800
|
800
|
800
|
800
|
Ironing Speed(m/min)
|
0-9
|
0-9
|
0-9
|
0-18
|
0-25
|
Electric Heating Power(kw)
|
18
|
27
|
36
|
64
|
96
|
Steam Presure(Mpa)
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
0.3--0.6
|
Steam Consumption(kg/h)
|
80
|
120
|
250
|
250
|
320
|
Steam lnlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Drain Outlet(lnch)
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
G1.5"
|
Rated-Voltage(V)
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
3P/220V/380V
|
Motor Power(kw)
|
0.75
|
0.75
|
1.5
|
1.5
|
2.2
|
Dimension(L.W.H) (mm)
|
1600x1300x1270
|
3500x1300x1270
|
3840×1300×1270
|
4040x2410x1420
|
4340x3350x1420
|
N.W.(kg)
|
750
|
1100
|
1300
|
3050
|
4350
|
Advantages:
Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
This equipment is made of high-precision 304 stainless steel drum,long service life.
Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency. Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.
Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
