Home Automatic Clothes Ironing Machine For Shirts With Stainless Steel Roller

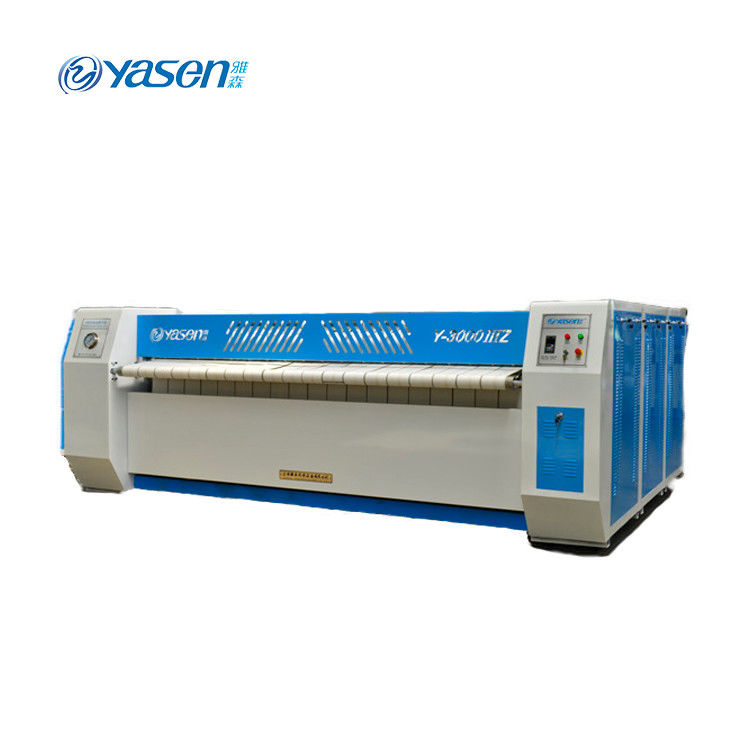

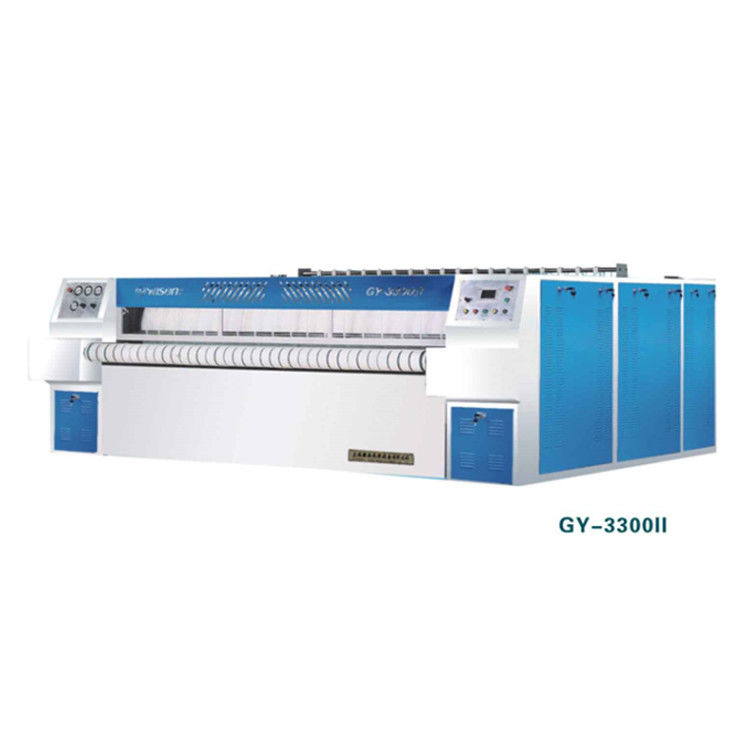

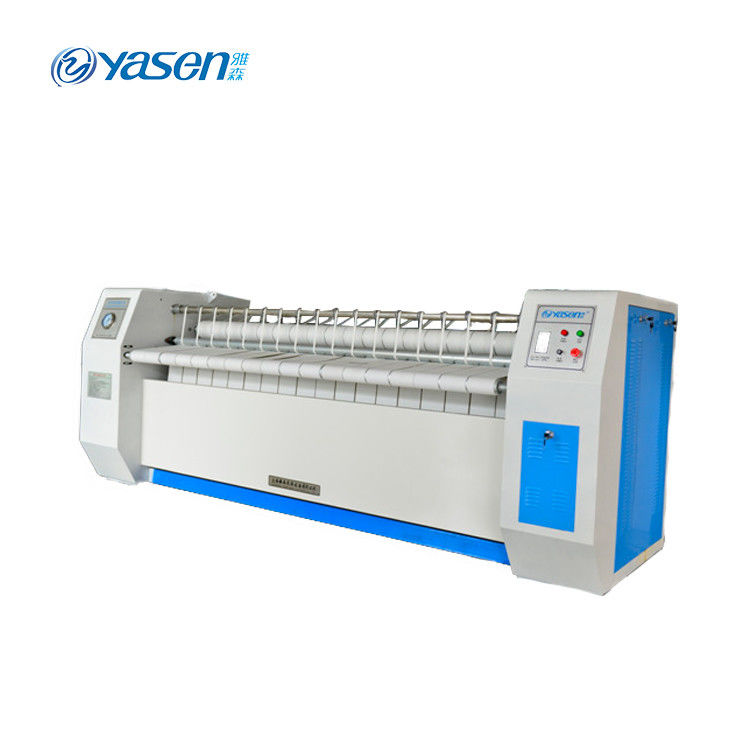

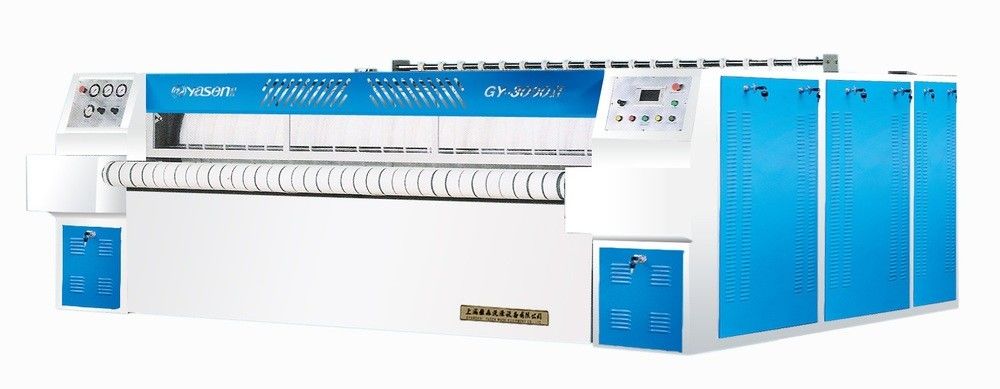

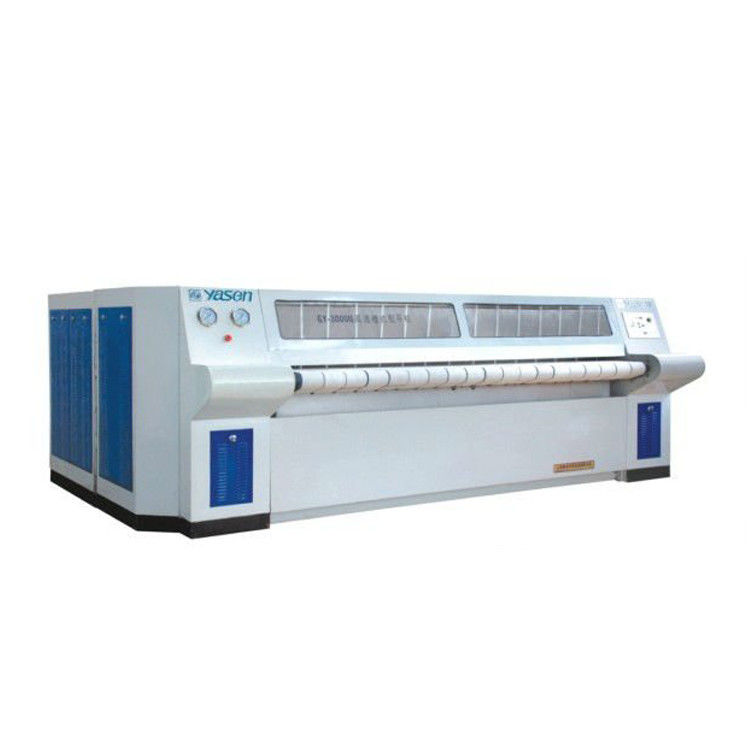

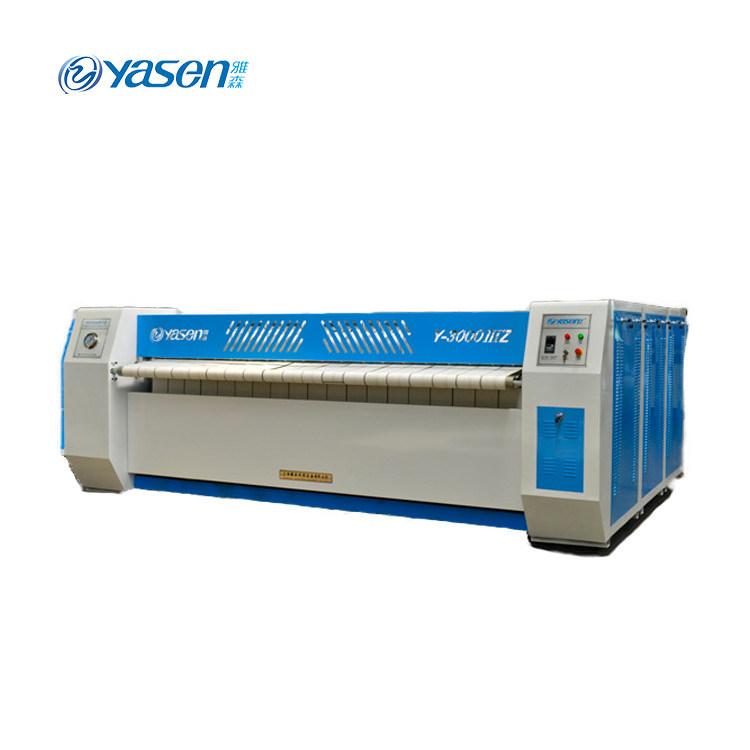

Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
l Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
l This equipment is made of high-precision 304 stainless steel drum,long service life.
l Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency.
l Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.
l Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
l Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
Product Parameters:
| Name: Roller Flatwork Ironer |
| Y Series |
Model |
| Attributes |
Y-2500I |
Y-3000II |
Y-3300III |
| Max Feeding Width(mm) |
2500 |
3000 |
3300 |
| Rolls Quantity |
1 |
2 |
3 |
| Roll Diameter(mm) |
800 |
800 |
800 |
| Ironing Speed(m/min) |
0-9 |
0-18 |
0-25 |
| Electric Heating Power(kw) |
27 |
64 |
96 |
| Steam Presure(Mpa) |
0.3--0.6 |
0.3--0.6 |
0.3--0.6 |
| Steam Consumption(kg/h) |
120 |
250 |
320 |
| Steam lnlet(lnch) |
G1.5" |
G1.5" |
G1.5" |
| Drain Outlet(lnch) |
G1.5" |
G1.5" |
G1.5" |
| Gas Consumption(m³/h) |
6m³ |
12m³ |
|
| Gas lnlet(lnch) |
G1.5“ |
G1.5“ |
|
| Rated-Voltage(V) |
220/380
/415
|
220/380
/415
|
3P/380
/50HZ
|
| Motor Power(kw) |
0.75 |
1.5 |
2.2 |
| Dimension(L.W.H) (mm) |
3540x1470
x1420
|
4040x2410
x1420
|
4340x3350x1420 |
| N.W.(kg) |
1500 |
3050 |
4350 |
The home automatic clothes ironing machine is a specialized piece of equipment that is designed to efficiently iron large quantities of clothes such as shirts, pants, and dresses. This equipment is commonly used in homes, where it provides a convenient and efficient way to iron clothes.
The ironing machine is equipped with a powerful motor that provides excellent performance and reliability. It also features automatic controls that allow the operator to adjust the temperature and speed of the ironing machine to suit different types of clothes.
The ironing machine uses a stainless steel roller to provide a professional finish to the clothes. The stainless steel roller is designed to be highly efficient, with features such as automatic shut-off and adjustable temperature settings that help to reduce energy costs.
The ironing machine is also equipped with an automatic folding system that allows the operator to fold the clothes automatically. This feature helps to streamline the ironing process and reduce labor costs.
The ironing machine is made of high-quality materials that ensure its durability and resistance to corrosion. It is also designed to be easy to maintain, with simple maintenance procedures that can be performed quickly and easily.
The ironing machine is suitable for various applications, including homes, hotels, and commercial laundries. It is also suitable for use in the hospitality industry for ironing tablecloths, napkins, and other linens.
The ironing machine is a cost-effective solution for businesses that need to process large volumes of clothes regularly. It is also a reliable investment that can help to improve the quality of laundry services and increase customer satisfaction.
