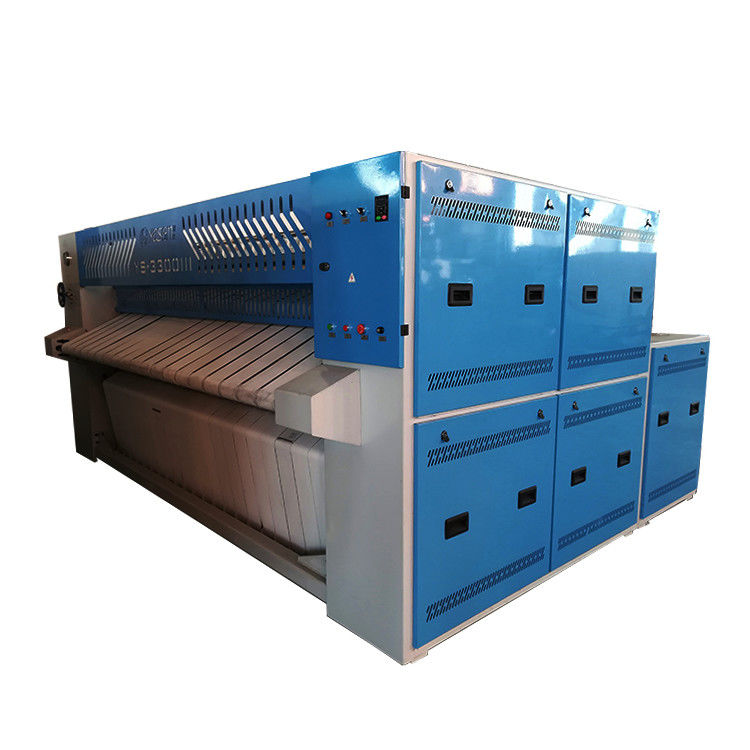

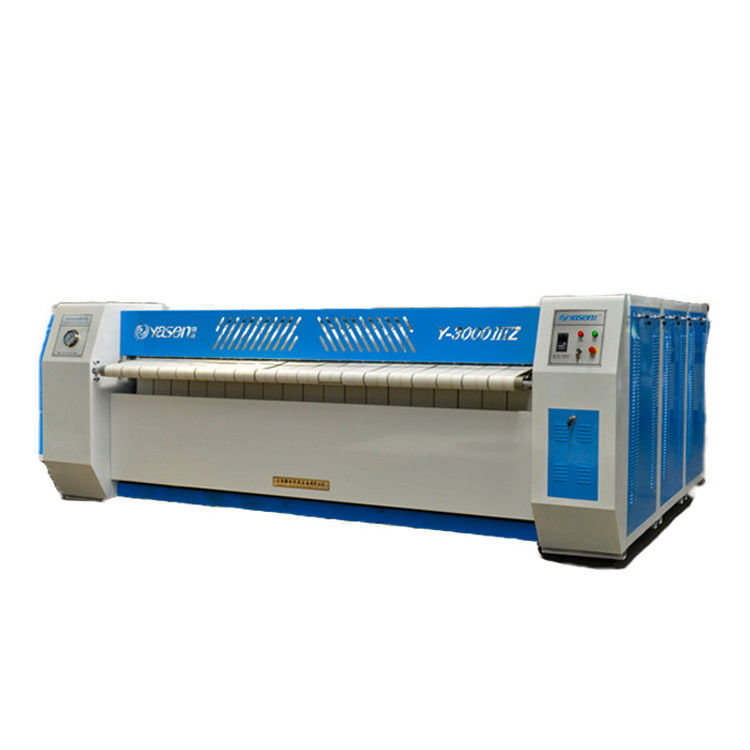

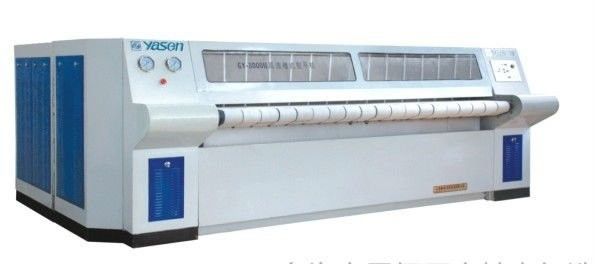

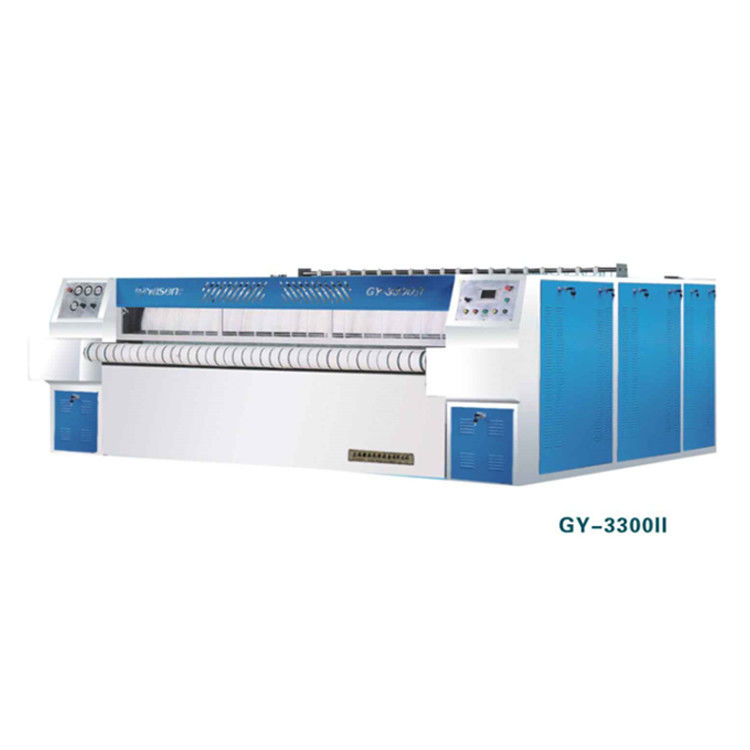

Washing Center Flatwork Ironer Machine Automatic Steam Heating Ironing Folding

Washing Center flatwork ironer machine

Steam Heating flatwork ironer machine

Automatic Folding flatwork ironer machine

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Certification:

IAF,CE; ISO

Request A Quote

Washing Center Flatwork Ironer Machine Automatic Steam Heating Ironing Folding

Product Details

Product Name:

Washing Center Flatwork Ironer Machine

Warranty:

1 Year

Usage:

Washing Center

Power:

0.75-2.2

Heating:

Steam Heating

Weight:

1500kg-4350kg

Ironing Speed:

0-25m/min

No. Of Roller:

1-5

Max Feeding Width:

2500mm,3000mm,3300mm

Material:

Stainless Steel

Highlight:

Washing Center flatwork ironer machine

Steam Heating flatwork ironer machine

Automatic Folding flatwork ironer machine

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$6,500.00/sets >=1 sets

Packaging Details

Wooden packaging

Supply Ability

1000 Set/Sets per Year

Fully Automatic Flatwork Ironer Machine for Commercial Laundry

Get Best Price

800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing

Get Best Price

3050kg Stainless Steel Ironing Bedsheet And Clothes Folding Machine With Iron Function

Get Best Price

5 Rolls Clean Sheet Automatic Laundry Flatwork Ironer With Steam Heating Function

Get Best Price

Contact Now

Product Description

Washing Center Flatwork Ironer Machine Automatic Steam Heating Ironing Folding

The washing center flatwork ironer machine is a specialized piece of equipment designed to efficiently iron large quantities of flatwork such as sheets, towels, and tablecloths. This equipment is commonly used in commercial laundries, hotels, and hospitals where high-quality laundry services are required.

Product Specifications

Attributes	Y-2500I	Y-3000II	Y-3300III
Max Feeding Width (mm)	2500	3000	3300
Rolls Quantity	1	2	3
Roll Diameter (mm)	800	800	800
Ironing Speed (m/min)	0-9	0-18	0-25
Electric Heating Power (kw)	27	64	96
Steam Pressure (Mpa)	0.3-0.6	0.3-0.6	0.3-0.6
Steam Consumption (kg/h)	120	250	320
Steam Inlet (Inch)	G1.5"	G1.5"	G1.5"
Drain Outlet (Inch)	G1.5"	G1.5"	G1.5"
Gas Consumption (m³/h)	6m³	12m³
Gas Inlet (Inch)	G1.5"	G1.5"
Rated Voltage (V)	220/380/415	220/380/415	3P/380/50HZ
Motor Power (kw)	0.75	1.5	2.2
Dimension (L.W.H) (mm)	3540x1470x1420	4040x2410x1420	4340x3350x1420
N.W. (kg)	1500	3050	4350

Applications

Y series roller automatic flat-work ironing machine is a new product developed with Sino-foreign technology. It is suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. It is used for ironing and finishing flat fabrics like bedsheets, bedcovers, and tablecloths after washing and extracting.

Key Features

Efficiently irons fabrics with duplex and no trace, ensuring high-quality ironing effect
Made of high-precision 304 stainless steel drum for long service life
Frequency conversion drives allow users to adjust ironing speed based on different fabrics
Programmable computer controlled with multi-language control panel and large screen LCD
User-friendly man-machine interface for easy operation
Uses frequency-conversion motor, reducer, and chains transmission for smooth operation
Equipped with buffer and auto adjustment conveying system
No guide strips required for precise conveying
Safe electrical-pneumatic design with emergency stop function
Automatic controls for temperature and speed adjustment
Highly efficient steam heating system with automatic shut-off
Automatic folding system to streamline laundry process
Made of high-quality, corrosion-resistant materials
Easy maintenance with simple procedures

After Sales Service

The whole machine has been guaranteed for 1 year
Providing lifelong technical support
Guarantee of spare parts supply
Engineers available to service machinery overseas
