100kg Steam Industrial Tumble Dryer

Place of Origin:

Shanghai, China

Brand Name:

YASEN

Request A Quote

Product Details

Product Name:

100kg Steam Industrial Tumble Dryer

Application:

Hotel Linens Tumble Dryer

Heating Type:

Steam Gas Electric

Consumes Of Steam(kg/h):

250

Rated Capacity(kg):

100kg

Steam Pressure:

0.4 - 0.6 MPa

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$2,500.00 - $7,500.00/sets

Packaging Details

Wooden package for washing machine

Supply Ability

100 Set/Sets per Month

120kg High-Capacity Tumble Dryer

Get Best Price

100kg Hotel Linen Dryer Industrial Tumble Dryer

Get Best Price

120kg Laundry Tumble Dryer

Get Best Price

100 kg Steam Electric Industrial Tumble Dryer Industrial Clothes Dryer

Get Best Price

Contact Now

Product Description

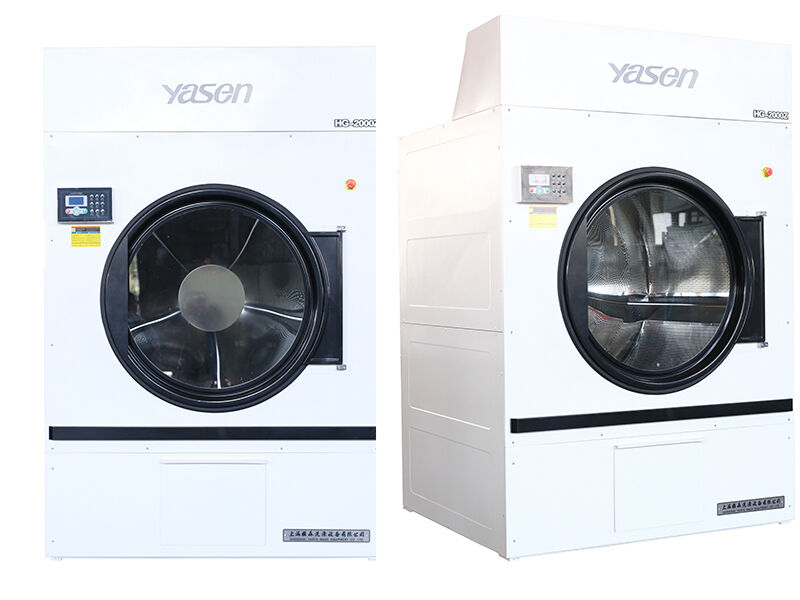

100kg Heavy-Duty Industrial Steam Tumble Dryer

The 100kg Industrial Steam Tumble Dryer is engineered specifically for high-intensity, continuous laundry operations. Featuring a massive Φ1450×1050 mm drum, it ensures bulk loads have sufficient space for full mechanical action, significantly reducing fabric creasing. Whether for 5-star hotel linens, healthcare textiles, or large-scale garment factories, this model delivers consistent performance under heavy-load conditions.

Key Advantages

High Thermal Efficiency: Equipped with a G2" standard steam inlet, the system maximizes heat exchange at 0.4-0.6 MPa pressure, ensuring uniform heat distribution for 100kg high-volume loads.
Dual-Blower High-Velocity Exhaust: Powered by two 1.5 kW high-performance suction fans. Compared to single-fan designs, this dual-blower configuration accelerates moisture extraction, increasing drying efficiency by over 20%.
Precision Frequency-Inverter Drive: A 2.2 kW main motor drives the drum at a speed of 28 r/min, optimizing drying throughput while minimizing mechanical wear on premium textiles.
Rugged Industrial Framework: With a net weight of 1250 kg, the reinforced chassis effectively dampens vibrations during high-speed operation, guaranteeing 24/7 structural stability.

Technical Specifications

Item	Technical Data
Rated Capacity	100 kg
Drum Dimension	Φ1450×1050 mm
Overall Dimensions (L×W×H)	1660 × 1950 × 2550 mm
Steam Pressure	0.4 - 0.6 MPa
Steam Consumption	250 kg/h
Steam Inlet Size	G2"
Equivalent Heating Power	83 kW
Rated Voltage	220V / 380V / 415V
Net Weight (N.W.)	1250 kg

Professional Maintenance Guidelines

Daily: Lint Filter Maintenance
A 100kg throughput generates significant lint. It is recommended to clean the lower lint compartment every 3-5 cycles. A clogged filter restricts airflow and overloads the blowers, extending drying times.
Weekly: Steam Trap Diagnostics
Use a temperature differential method to inspect the steam trap. If the inlet and outlet temperatures are identical with no drainage, the trap may be blocked, causing condensate buildup and preventing the unit from reaching rated thermal output.
Monthly: Drive Belt Tension Calibration
Inspect the main motor drive belts for glazing or cracks. Maintaining optimal tension ensures a consistent drum speed of 28 r/min, preventing energy loss due to belt slippage.

Frequently Asked Questions

Q: What is the typical cycle time for a 100kg steam dryer?

A: At a standard steam pressure of 0.5 MPa, a full load of cotton textiles typically completes a cycle within 30-45 minutes, depending on the initial moisture retention.

Q: Why utilize a dual-blower system (1.5 kW x 2)?

A: For large-capacity drums, dual blowers create a more uniform negative pressure environment. This ensures that moist air is evacuated from the center of the drum as efficiently as the edges.

Q: What are the plumbing requirements for the steam inlet?

A: A 2-inch (G2") standard pipe diameter is recommended to ensure adequate steam mass flow during peak demand, maintaining constant thermal output for rapid evaporation.

Product Parameters

Name: Tumble Dryer	HG Series \| Model
Name: Tumble Dryer	HG-300	HG-400	HG-500	HG-700	HG-1000	HG-1400	HG-2000	GTH-120Z
Rated Capacity (kg)	15	20	25	35	50	70	100	120
Drum Dimension (mm)	Φ800×600	Φ900×650	Φ970×670	Φ970×1000	Φ1180×870	Φ1280×950	Φ1450×1050
Motor Power (kw)	0.55	0.55	0.75	0.75	1.1	1.5	2.2
Drying Speed (r/min)	48	45	40	38	35	30	28
Fan Power (kw)	0.55	0.55	0.75	0.75	1.1	1.5	1.5×2
Heating Power (kw)	13	18	24	32	39	50	83
Rated Voltage (V)	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415	220/380/415
Steam Pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Consumes of Steam (kg/h)	42	42	70	98	120	180	250
Steam Inlet (Inch)	G3/4"	G3/4"	G1"	G1"	G1.5"	G2"	G2"
Gas Consumption (m³/h)								8.5m³
Gas Inlet (Inch)								G1"
Dimension (L×W×H) (mm)	850×1100×1600	880×1170×1650	1060×1250×2000	1100×1500×2060	1310×1550×2200	1405×1560×2300	1660×1950×2550
N.W. (kg)	420	430	450	480	560	850	1250
